Condition: New, Retail Box. Warranty: 1 year

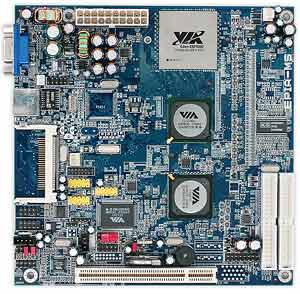

VIA EPIA MS Motherboard
VIA EPIA MS Motherboard
On-board VIA C3 processor, VIA CLE266
chipset, 1 SO-DIMM slot, 1 PCI, 1 CF, On-Board Audio, Video, LAN, USB.
Mini-ITX. |
| |
|
|
- Internal I/O Interface:
- VIA VT1622A TV Encoder
- Focus FS453 TV Encoder
(Manufacturer Optional)
- VIA VT6207 USB2.0 CF Bridge
- 3 USB Connectors for 6 USB 2.0
Ports
- Front-Panel Audio Connectors (Mic-in
and Line-Out)
- CD Audio-in Connector
- 1 Buzzer
- 1 SM Bus Connector
- VIP Port Connector (VIP0)
- 1 FIR connector
- 1 CIR connector (Switchable
for KB/MS)
- 1 Wake-on-LAN connector
- CPU FAN/SYS FAN/FAN3
Connectors
- 1 I2C connector
- 1 Connector for LVDS/TTL/DVI
Panel and VIP1 (Manufacturer Optional)
- 2 Serial Port Connector for 2
Com Port
- 1 PS2 Mouse Connector
- 1 PS2 Keyboard Connector
- 1 SPDIF Connector
- 1 Connector for
S-Video/Composite/SCART/Component (YPbPr)
- 1 Audio Pin Header; Line-out,
Line-in and Mic-in (Smart 5.1 Support)
- ATX Power Connector
- Storage:
- 2 X UltraDMA 133/100/66
Connector
|
EPIA MS
Specifications
- Processor Support:
- VIA C3™/ VIA Eden™ EBGA processor
- Chipset:
- VIA CLE266 North Bridge
- VIA VT8237 South Bridge
- Memory:
- 1 DDR266 SO-DIMM socket
- Up to 1GB memory size
- Expansion Slots:
- On-Board Audio:
- VIA VT1616 6channel AC' 97 codec
- On-Board Video:
-
Integrated VIA UniChrome™ AGP graphics
- On-Board LAN:
- VIA VT6103 10/100 Base-T Ethernet
PHY
- Rear Panel I/O Ports:
- 1 VGA port
- 1 RJ-45 LAN port
- 1 CF Slot
- BIOS:
- Award BIOS
- 2/4Mbit flash memory
- Form Factor:
- Mini-ITX (6 layer)
- 6.7" x 6.7"
- Manageability:
- CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer
Power-on
- System power management
- AC power failure recovery
|
|
