54500002 - Via EPIA EPIA ML6000EAG C3 600MHz - EPIA-ML6000EAG
Condition: New, Retail Box. Warranty: 1 year.

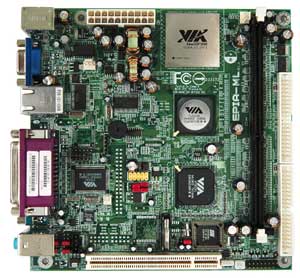

VIA EPIA-ML6000EAG C3 600MHz Motherboard
VIA EPIA-ML6000EAG C3 600MHz Motherboard
VIA EPIA-ML6000EAG C3 600MHz, On-board VIA C3 processor, VIA CLE266
chipset, 1 DDR slot, 1 PCI, On-board Audio, Video, LAN, USB. Mini-ITX
|
| |
|
|
- Internal I/O Interface:
- VIA VT1622 TV out
- 1 USB connector for 2
additional USB 2.0 ports
- Front-panel audio connectors (mic-in
and line-out)
- 1 CD Audio-in connector
- 1 Buzzer
- FIR connector
- CIR connector (Switchable for
KB/MS)
- Wake-on-LAN connector
- CPU/Sys FAN/Fan 3
- 1 SMBus connector
- 1 Serial port connector for a second com port
- ATX Power Connector
- Rear Panel I/O Ports:
- 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 Parallel port
- 1 RJ-45 LAN port
- 1 Serial port
- 2 USB 2.0 ports
- 1 VGA port
- 3 Audio jacks: line-out, line-in and mic-in (Smart 5.1 Support)
|
EPIA ML
Specifications
- Model:
VIA EPIA-ML6000EAG C3 600MHz
- Processor Support:
- VIA C3™/ VIA Eden™ EBGA processor
- Chipset:
- VIA CLE266 North Bridge
- VIA VT8235 South Bridge
- Memory:
- 1 DDR266 DIMM socket
- Up to 1GB memory size
- Expansion Slots:
- On-Board Audio:
- VIA VT1616 6 channel AC' 97 codec
- On-Board Video:
-
Integrated VIA UniChrome AGP Graphics
with MPEG-2 Accelerator
- Storage:
- 2 X UltraDMA 133/100/66 Connectors
- On-Board LAN:
- VIA VT6103 10/100 Base-T Ethernet
PHY
- Manageability:
- CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer Power-on
- System power management
- AC power failure recovery
- BIOS:
- Award BIOS
- 2Mbit flash memory
- Form Factor:
- Mini-ITX (4 layer)
- 6.7" x 6.7
|
|
