54500003 - Via EPIA VT-310DP
Condition: New, Retail Box. Warranty: 1 year.

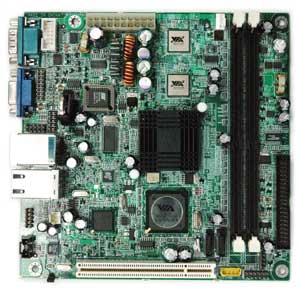

VIA EPIA VT-310DP Motherboard
VIA EPIA VT-310DP Motherboard
Dual On-board VIA EDEN-N processors,
VIA CN400 chipset, 2 DDR, 1 PCI, SATA, On-board Audio, Video, Lan (3x),
USB. Mini-ITX. |
| |
|
|
- Internal I/O Interface:
- 1 USB front header for 2
additional USB 2.0 ports
- 1 VGA header for a second VGA
port
- 1 CD audio-in connector
- 1 buzzer header
- 1 front panel header for case
connector
- 1 audio header for AC'97
- 1 SM Bus Connector
- 1 PS2 header (headless
architecture for KB/MS)
- 1 4-pin CPU fan and 2 3-pin
chassis fan
- 1 10-pin header for RS232
- 1 ATX Power Connector
- Storage:
- 1 UltraDMA 133/100/66 EIDE
Connector
- 2 Serial ATA Ports
- BIOS:
- Award BIOS
- 4Mbit flash memory
- Form Factor:
- Mini-ITX (8 Layers)
- 6.7" x 6.7"
- Manageability:
- CPU voltage monitoring
- Wake-on-LAN, Keyboard-Power-on,
Timer-Power-on
- System power management
- AC power failure recovery
|
EPIA VT-310DP
Specifications
- Processor Support:
- 2 VIA EDEN-N NanoBGA Processors
- VIA Padlock Security Suite
- PowerSaver 3.0: Extends battery
life by dynamically reducing power consumption
- Chipset:
- VIA CN400 North Bridge
- VT8237R South Bridge
- Memory:
- 2 DDR400/333/266
- Up to 2GB memory size
- Expansion Slots:
- 1 PCI expansion slot, with riser
card to support two PCI slots
- On-Board Audio:
- VIA Vinyl Six-TRAC 6-channel AC'97
Audio
- On-Board Video:
-
Integrated S3 Graphics UniChrome™ Pro
AGP Graphics with MPEG-2 decoding & MPEG-4 acceleration
- On-Board LAN:
- VIA VT6122 10/100/1000 Base-T
Ethernet Controller (GbE LAN)
- VIA VT6103L 10/100 Base-T Ethernet
PHY
- i82451GI/i82551QM 10/100 Base-T
Ethernet Controller option
- Rear Panel I/O Ports:
- 1 VGA Port
- 2 USB 2.0 Ports
- 3 RJ-45 LAN Ports
- 1 COM Port
|
|
