54500011 - Via EPIA V
Condition: New, Retail Box. Warranty: 1 year.

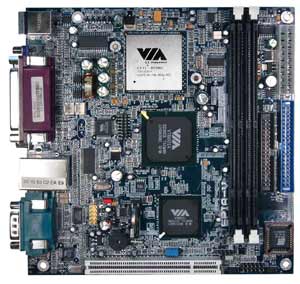

VIA EPIA V Motherboard
VIA EPIA V Motherboard
CIA C3 On-board processor, VIA PLE133
chipset, 1 PCI, 2 DIMM, On-board Audio, Video, LAN, USB. Mini ITX form
factor. |
| |
|
|
- Internal I/O Interface:
- VIA VT1621 TV out
- 1 USB connector for 2 USB 1.1
ports
- 1 CD Audio-in connector
- 1 FIR connector
- 1 CIR connector
- 1 PS2 connector
- 1 Wake-on-LAN connector
- CPU/Sys FAN
- 1 Buzzer
- ATX Power Connector
- Storage:
- BIOS:
- Award BIOS
- 2/4Mbit flash memory
- Manageability:
- CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer
Power-on
- System power management
- AC power failure recovery
|
EPIA V Specifications
- Processor Support:
- VIA C3™/ VIA Eden™ EBGA processor
- Chipset:
- VIA PLE133 North Bridge
- VT8231 South Bridge
- Memory:
- 2 PC 133 DIMM socket
- Up to 1GB memory size
- Expansion Slots:
- On-Board Audio:
- VIA VT1612A 2 channel AC'97 Codec
- On-Board Video:
-
Integrated AGP 4X Graphics
- On-Board LAN:
- VIA VT6103 PHY 10/100 Ethernet
- Rear Panel I/O Ports:
- 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 VGA Port
- 1 Parallel port
- 1 RJ-45 LAN port
- 1 RCA port (SPDIF or TV out)
- 1 S-Video port
- 2 USB 1.1 ports
- 1 Serial port
- 3 Audio jacks: line-out, line-in
and mic-in
- Form Factor:
- Mini-ITX (4 layer)
- 17 cm x 17 cm
|
|
