55600025 - Interloper Combo Kit # 26
Condition: Refurbished. Warranty: 90 days
CPU Motherboard Combo Upgrade kit - Celeron 1.8 and Jetway P4XFCP socket 478 motherboard with support for 168 pin PC-133 SDRAM and 184 pin DDR support and horizontal audio jacks - specifications, price and availability
Interloper.com Combo Kit # 26
Supports both 168 Pin PC-133 SDRAM and 184 Pin DDR
What you get:
-
Intel Celeron 1.8 GHz CPU
-
Heatsink and fan
-

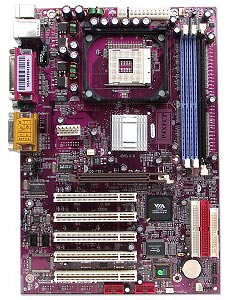

Jetway P4XFCP motherboard with on-board audio and LAN
-
User Manual
-
Motherboard Installation CD
-
I/O shield
-
Floppy cable
-
IDE cable
The CPU is installed on the
motherboard so you don't have to. The kit is tested before shipment.
|
| |
|
|
- Rear Panel I/O Ports:
- 2 x PS/2 ports
- 2 x 9-pin standard serial ports
- 1 x 25-pin standard parallel port
- 1 x 15-pin game/midi port
- 6 x USB 2.0 ports (two on back and four via header)
- Line in, Microphone and line-out jacks
- BIOS:
- Award BIOS
- 2 MB Flash ROM
- Plug and Play
- Form Factor:
- ATX form factor. Dimensions 12"W
x 8.25"D
|
Motherboard
Specifications
- Processor Support:
- Intel Pentium 4 FSB 533 up to 2.8 GHz
- Intel Pentium 4 FSB 400 up to 2.5 GHz
- Intel Celeron up to 2.4 GHz
- Chipset:
- VIA P4X266E and VT8235 chipset
- FSB:
- Memory:
- One (1) 168-pin DIMM slot
- Two (2) 184-pin DDR DIMM slots
Use either 168 Pin or 184 Pin memory. You must not
mix and match they two types of memory
- Expandable up to 1 GB SDRAM or up to 2 GB DDR RAM.
- Expansion Slots:
- 1 x AGP slot
- 5 x PCI slots
- On-Board Audio:
- AC'97 integrated audio CODEC
- On-Board LAN:
- VIA VT6103 integrated 10/100
Ethernet
- IDE:
- 2 x UDMA/133/100/66/33 IDE controllers
- 1 x floppy controller
|
|
