CPU + Motherboard Combo Kit

Upgrade Kit # 35

What you get:

• Intel Pentium 4 531, 3.0GHz, FSB 800, 1MB LGA775 CPU

• Heatsink and fan

• Asus P5PE-VM socket 775 motherboard with on-board Audio, Video and Gigabit LAN

• User guide

• Software CD

• Related cables

• I/O Shield

• The CPU and fan is installed on the motherboard so you don't have to. The kit is tested before shipment.

• BIOS:
  • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0

• Support CD:
  • Drivers
  • ASUS PC Probe II
  • Anti-virus software (OEM version)
  • ASUS LiveUpdate Utility

• Accessories:
  • 1 x Serial ATA cable
  • 1 x Serial ATA power cable (For one devices)
  • 1 x UltraDMA 100/66 cable
  • 1 x FDD cable
  • I/O shield
  • User's manual

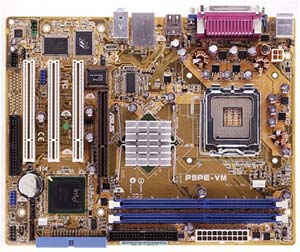

Motherboard Specifications

• Model:
  • Asus P5PE-VM socket 775 motherboard

• Processor Support:
  • LGA775 socket for Intel®Pentium D/Pentium 4/Celeron CPU
  • Compatible with Intel® 05B/05A and 04B/04A processors
  • Support Intel®EM64T/Hyper-Threading Technology
  • Note. This motherboard does not support Intel Pentium Processor Extreme Edition

• Chipset:
  • Intel 865G
  • Intel ICH5

• FSB:
  • 1066/800/ 533 MHz

• Memory:
  • Dual Channel Memory Architecture
  • 2 x 184-pin DIMM Sockets support max. 2GB DDR400/333/266 non-ECC, unbuffered DDR SDRAM memory

• Expansion Slots:
  • 1 x AGP 8X
  • 3 x PCI

• On-Board Audio:
  • ADI 1888 6-Channel AC'97 Audio CODEC
  • Audio Sensing Technology

• On-Board Video:
  • Intel® Extreme Graphics 2

• On-Board LAN:
  • Marvell 88E8001 Gigabit LAN

• Storage:
  • ICH5 South Bridge:
  • 2 x UltraDMA 100/66/33
  • 2 x Serial ATA

• Rear Panel I/O Ports:
  • 1 x Parallel
  • 1 x COM1
  • 1 x VGA
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x 6-Channel Audio I/O
  • 1 x RJ45
  • 4 x USB 2.0/1.1

• Form Factor:
  • uATX Form Factor, 9.6" x 7.6" (24.5cm x 19.3cm)
