LAVA 2SP-ISA ISA 2 Serial and 1 Parallel Port

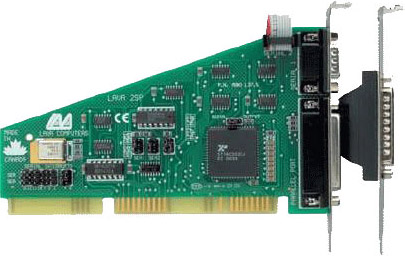

LAVA 2SP-ISA

The 2SP-ISA has been one of Lava's most popular products for about 10 years now, and it is still going strong. One 2SP-ISA doubles your serial ports and adds a bi-directional parallel port in a system short on ISA slots. In addition to solving ISA real estate shortage, the board is ideal for systems where manual setting of IRQ and COM addresses is a must. 2SP-ISA offers a generous selection of IRQ, COM, and LPT settings, to minimize the possibility of conflicts in resource allocation. The 2SP-ISA is ideal for any serial and parallel peripheral.  Ideal for use with external modems, Point-of-Sale (POS), and industrial applications.

• Adds two high-speed 16550 UART serial ports
• One bi-directional parallel port
• Serial ports support 115.2 kbps throughput rate
• Each serial port selectable for any of IRQ 2/3/4/5/10/11/12/15
• Each serial port independently configurable as Com 1 through Com
• Parallel port configurable as LPT 1/2 using IRQ 5/7
• Lava Lifetime Warranty

• One 9-pin serial port
• One 25-pin serial port
• One 25-pin parallel port

• ISA Slot
