Asus P8B75-M/CSM

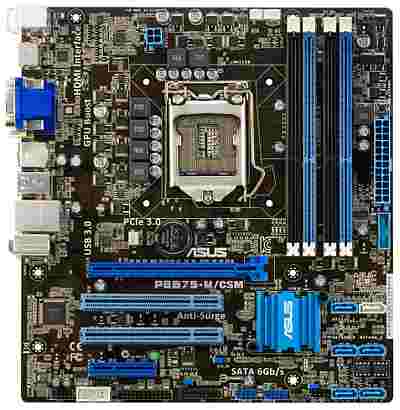

Asus P8B75-M/CSM Motherboard

• Storage:

  • Intel ® B75 chipset :
  • 5 x SATA 3Gb/s port(s), blue
  • 1 x eSATA 6Gb/s port(s), gray

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 3 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 1 x COM port(s) connector(s)
  • 1 x SATA 6Gb/s connector(s)
  • 5 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x parallel port connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Chassis Intrusion connector(s)
  • 1 x MemOK! button(s)


• BIOS:

  • 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Accessories:

  • User's manual
  • I/O Shield
  • 1 x SATA 3Gb/s cable(s)
  • 1 x SATA 6Gb/s cable(s)

Motherboard Specifications

• Model:
  • Asus P8B75-M/CSM Motherboard

• Processor Support:

  • Intel ® Socket 1155 for 3rd/2nd  Generation Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset:
  • Intel ® B75

• Memory:

  • 4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture

• Expansion Slots:

  • 1 x PCIe 3.0/2.0 x16
  • 1 x PCIe 2.0 x4
  • 2 x PCI

• On-Board Video:

  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DVI/RGB ports
  • - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  • Maximum shared memory of 1024 MB

• On-Board Audio:

  • VIA VT1708S 8-Channel High Definition Audio CODEC
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

• On-Board LAN:
  • Realtek ® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)

• Special Features:

  • ASUS EPU :
  • - EPU
  • GPU Boost
  • ASUS Exclusive Features  :
  • - MemOK!
  • - AI Suite II
  • - Ai Charger
  • - Anti-Surge
  • - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • - Network iControl
  • - USB 3.0 Boost
  • ASUS Quiet Thermal Solution  :
  • - ASUS Fan Xpert
  • - ASUS Q-Fan 2
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 2
  • - ASUS MyLogo 2

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE


• Form Factor:

  • uATX Form Factor
    9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
