Asus P8H61-I R2.0

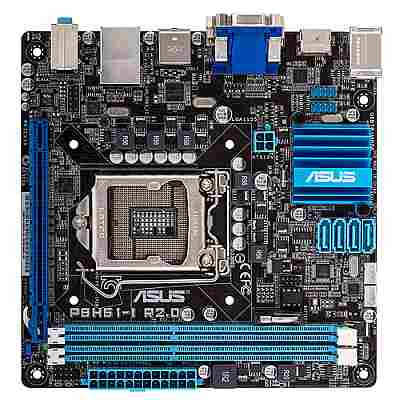

ASUS P8H61-I R2.0 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0 (blue)
  • 4 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Interface:
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)

• USB Ports:
  • ASMedia ® ASM1042 controller :
  • 2 x USB 3.0/2.0 port(s) (2 at back panel, )
  • Built-in Controller :
  • 8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
• Accessories:
  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)

Motherboard Specifications

• Model:
  • ASUS P8H61-I R2.0 Motherboard

• CPU:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium ®/Celeron ® Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
• Chipset:
  • Intel ® H61(B3)
• Memory:
  • 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
• Expansion Slots:
  • 1 x PCIe 3.0/2.0 x16
• On-Board Audio:
  • VIA 8-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• On-Board Video:
  • Integrated Graphics Processor
  • Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports RGB with max. resolution 2048 x 1530 @ 75 Hz
    Maximum shared memory of 1748 MB

• Storage:
  • Intel ® H61(B3) chipset :
  • 4 x SATA 3Gb/s port(s), blue
• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• Manageability:
  • WOL by PME, PXE
• Support Disc:
  • Drivers
  • ASUS Utilities
  • ASUS Update
  • Anti-virus software (OEM version)
• BIOS:
  • 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

• Form Factor:
  • Mini ITX Form Factor
  • 6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm )
