Asus P8H77-I

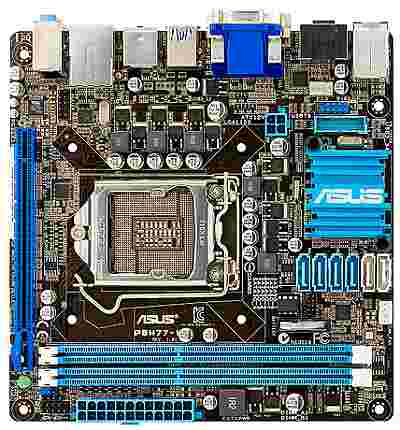

Asus P8H77-I Motherboard

• Storage:
  Intel ® H77 chipset :
  • 2 x SATA 6Gb/s port(s), gray
  • 4 x SATA 3Gb/s port(s), blue
  • Support Raid 0, 1, 5, 10

• Rear Panel I/O Ports:

  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 6 x USB 2.0
  • 1 x Optical S/PDIF out
  • 3 x Audio jack(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 2 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 1 x Chassis Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)

• BIOS:

  • 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

• Manageability:
  • WOL by PME, PXE

• Accessories:

  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)

Motherboard Specifications

• Model:
  • Asus P8H77-I Motherboard


• Processor Support:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium ®/Celeron ® Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • Supports Intel ® Turbo Boost Technology 2.0
  • * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset:
  • Intel ® H77

• Memory:

  • 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • * 1600MHz and higher frequency is supported by Intel ® 3rd generation processors.
  • * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

• Expansion Slots:
  • 1 x PCIe 3.0/2.0 x16

• On-Board Video:
  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DVI/RGB ports
  • - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz

• On-Board Audio:
  • VIA 8-Channel High Definition Audio CODEC
    - Supports : Multi-streaming, Front Panel Jack-retasking

• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• Special Features:

  • GPU Boost
  • ASUS Exclusive Features :
  • - AI Suite II
  • - Ai Charger+
  • - Anti-Surge
  • - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • - USB 3.0 Boost
  • ASUS Quiet Thermal Solution :
  • - ASUS Fan Xpert
  • - ASUS Q-Fan 2
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 2
  • - ASUS MyLogo 2

• Form Factor:
  • Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
