Biostar A690G M2 Biostar A690G-M2 Motherboard Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2 AMD 690G chipset 1 x PCIe x16 1 x PCIe x1 2 x 32-bit 33MHz PCI DDR2 LAN USB IDE SATA2 RAID Video ( VGA & DVI) Audio SPDIF Micro-ATX Form Factor

Name: Biostar A690G M2 Biostar A690G-M2 Motherboard Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2 AMD 690G chipset 1 x PCIe x16 1 x PCIe x1 2 x 32-bit 33MHz PCI DDR2 LAN USB IDE SATA2 RAID Video ( VGA & DVI) Audio SPDIF Micro-ATX Form Factor
Brand: Biostar
SKU: 110309
Price: 73.24 USD
Availability: OutOfStock

Part # 110309

Condition : New- Retail Box

| Warranty: 365 days

Brand : Biostar

| Log in to add review

Rate this product:

Updating...

Quantity: Out of Stock

Out of Stock: Don’t worry—click “Notify Me” and we’ll email you as soon as it’s back.

Biostar Motherboard

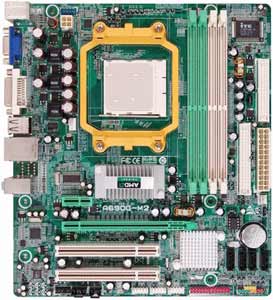

Biostar A690G-M2 Motherboard

Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video ( VGA & DVI), Audio, SPDIF, Micro-ATX Form Factor

Biostar A690G-M2 Motherboard, Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Video ( VGA & DVI), Audio, SPDIF, Micro-ATX Form Factor

Internal I/O Interface:
- 1 x Floppy connector
- 3 x USB 2.0/1.1 headers
- 1 x LPT1 Header
- 1 x Serial Header
- 1 x S/PDIF out header
- 4 x SATA2 ports
- 1 x IDE Port

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x VGA Port
- 1 x DVI Connector
- 1 set 5.1 channel Audio Jack (3 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
On-Board LAN:
- 1 x Marvell 88E8056
- 10/100/1000 Controller
Power Connector :
- 1 x 24pin main power
- 1 x 4 pin CPU power

Biostar A690G-M2 Motherboard

Model:
- Biostar A690G-M2 Motherboard

Processor Support:
- Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron
- Supports AMD Cool'n'Quiet Technology
- Socket AM2
FSB:
- 2000 MTS
Chipset:
- AMD 690G

Memory:
- Support Dual Channel DDR2 400/533/667/800 MHz
- 4 x DDR2 DIMM Memory Slot
- Max. Supports up to 8GB Memory
Expansion Slots:
- 1 x PCIe x16
- 1 x PCIe x1
- 2 x PCI 32bit/33MHz slots
Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA2 3Gb/s
- Support RAID: 0,1, 10
Audio:
- Realtek ALC662 6-Channel HD Audio
- 2/4/5.1
- Compliant with HD specification
Video:
- ATI Radeon X1250 Graphics, On Board Graphic
- Max. Memory Share Up to 512MB
BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
Form Factor:
- Micro-ATX Form Factor
- 21.5cm X 24.4cm
