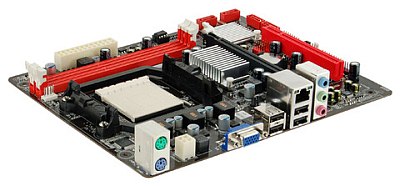

BIOSTAR A780L3B Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 4 x USB 2.0 Port
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 2 x USB Header
  • 4 x SATA2 3Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x CD Driver
  • 1 x Quick Guide
• On-Board LAN:
  • Realtek RTL8105T - 10/100 Controller

• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8

Motherboard Specifications

• Model:
  • BIOSTAR A780L3B Motherboard

• CPU:
  • AMD Phenom II X4 Processor
  • AMD Phenom II X3 Processor
  • AMD Phenom II X2 Processor
  • AMD Athlon II X4 Processor
  • AMD Athlon II X3 Processor
  • AMD Athlon II X2 Processor
  • AMD Sempron Processor
  • Maximum CPU TDP (Thermal Design Power) : 95Watt
• HT:
  • Support HT 3.2G
• Chipset:
  • AMD 760G / SB710
• Memory:
  • Support Dual Channel DDR3 800/1066/1333/1600(OC) MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 16GB Memory
• Expansion Slots:
  • 1 x PCI-E x16 Slot
  • 1 x PCI Slots
• On-Board Audio:
  • VIA VT1708B 6-Channel HD Audio
• On-Board Video:
  • ATI Radeon HD3000 Graphics, On Board Graphic Max. Memory Share Up to 512 MB
  • VGA Port
• Storage:
  • 4 x SATA2 Connector
  • Support SATA RAID: 0,1,10
• USB Ports:
  • 4 x USB 2.0 Port
  • 2 x USB 2.0 Header
• Special Features:
  • Windows 8 Ready
  • Supports Solid capacitor
  • Supports BIOS-Flasher

• Form Factor:
  • Micro ATX Form Factor
  • Dimension: 22.5cm X 18.2cm ( W x L ) (8.6 Inch x 7.2 Inch)
