• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8111B - 10/100/1000 Controller


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power


• Form Factor:
  • MicroATX Form Factor, 24.4cm X 24.4cm

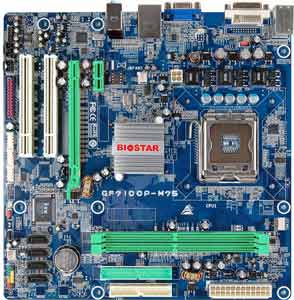

Biostar GF7100P-M7S Motherboard

• Model:
  • Biostar GF7100P-M7S Motherboard

• Processor Support:
  • Supports Intel® Core2 Quad/Core2 Duo/Pentium® D/Pentium® 4/Celeron® 400 Series/Celeron® D Processor
  • Supports Intel Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • 800/1066/1333MHz


• Chipset:
  • NVIDIA GeForce 7100

• Memory:
  • Support Dual Channel DDR2 533/667/800 MHz
  • 2 x DDR2 DIMM Memory Slot
  • Max. Supports up to 4GB Memory


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s
  • Support SATA RAID: 0,1,0+1,5


• Audio:
  • Realtek ALC662 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Video:
  • NVIDIA GeForce 7100 GPU, On Board Graphic
  • Max. Memory Share Up to 512MB(Under OS By Turbo Cache),GPU Frequency @600MHz


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play,
  • STR/STD, Hardware monitor
  • Multi Boot, DMI
  • Supports ACPI revision 1.0 specification
