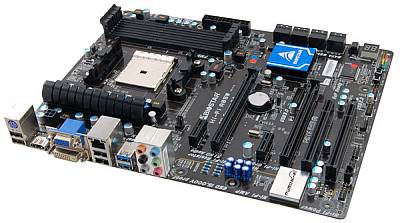

BIOSTAR Hi-Fi A85W Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 4 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 6 x Audio Connector
• Internal I/O Interface:
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 8 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 2 x System FAN Header
  • 1 x Serial Header
  • 1 x CIR Header

• USB Ports:
  • 2 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 4 x USB 2.0 Port
  • 2 x USB 2.0 Header
• Accessories:
  • 4 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x User Manual

• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8

Motherboard Specifications

• Model:
  • BIOSTAR Hi-Fi A85W Motherboard

• CPU:
  • AMD A10 Processor
  • AMD A8 Processor
  • AMD A6 Processor
  • AMD A4 Processor
  • AMD E2 Processor
  • AMD Athlon II X4 Processor
  • Maximum CPU TDP (Thermal Design Power) : 100Watt
• Chipset:
  • AMD A85X
• Memory:
  • Support Dual Channel DDR3 2400(OC)/2133(OC)/1866/1600/1333/1066/800 MHz
  • 4 x DDR3 DIMM Memory Slot
  • Max. Supports up to 64GB Memory
• Expansion Slots:
  • 2 x PCI-E x16 2.0 Slot (x16 + x4)
  • 2 x PCI-E x1 2.0 Slot
  • 2 x PCI Slots
• On-Board Audio:
  • Realtek ALC892 8-Channel Blu-ray Audio
• On-Board Video:
  • By CPU model
  • AMD Dual Graphics Technology
  • Supports DX11
  • Supports HDCP
  • VGA Port
  • DVI Port
  • HDMI Port
• Storage:
  • 8 x SATA3 Connector
  • Support SATA RAID: 0,1,5,10
• On-Board LAN:
  • Realtek RTL8111F - 10/100/1000 Controller
• Special Features:
  • Windows 8 Compatible
  • Supports PURO Hi-Fi
  • Supports Smart Speed LAN
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Supports 100% Solid capacitor
  • Supports Rapid Switch
  • Supports Rapid Debug3
  • Supports BIOS-Flasher
  • Supports Charger Booster
  • Supports BIOS Online Update

• Form Factor:
  • ATX Form Factor
  • Dimension: 30.5cm x 23.5cm ( W x L ) (12 Inch x 9.3 Inch)
