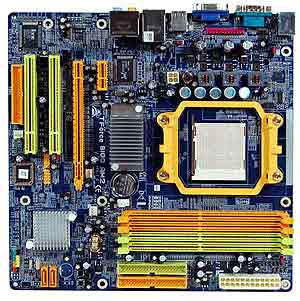

Biostar TForce 6100

• Rear Panel I/O Ports:
  • 1 x Serial
  • 1 x Parallel port header
  • 1 x VGA port
  • 1 x PS/2 mouse, 1x PS/2 keyboard
  • 8 x USB 2.0 (4 rear, 4 front)
  • 6 x 7.1 channel audio jack
  • 1 x RJ-45 LAN jack

• Internal I/O Interface:
  • 1 x Floppy connector
  • 2 x IDE connector
  • 1 x Front audio header
  • 2 x SATA connector
  • 1 x SPDIF Out
  • 1 x CD-in connector
  • 1 x System fan connector
  • 1 x CPU fan connector

• Hardware Monitoring:
  • CPU / System Fan Speed
  • CPU Voltage
  • AGP Voltage
  • CPU Temperature
  • System Temperature
  • Vcore,+3.3V,+5V,+12V

• Accessories:
  • 1 x User's Manual
  • 1 x Overclock Guide
  • 1 x HDD Cable
  • 1 x FDD Cable
  • 1 x Driver CD
  • 1 x Rear I/O Shield
  • 1 x S/PDIF Cable

Motherboard Specifications

• Model:
  • Biostar TForce 6100

• Processor Support:
  • Athlon 64 x2 and Athlon 64 socket AM2 processors
  • 2GHz HyperTransport technology

• Chipset:
  • NVIDIA GeForce 6100

• Memory:
  • 4 DDR2 800 memory slots
  • Maximum 4GB system memory
  • Dual-channel memory architecture

• Expansion Slots:
  • 1 x PCI Express 16x
  • 1 x PCI Express 1x
  • 2 x PCI

• On-Board Video:
  • NVIDIA GeForce 6100 GPU

• On-Board Audio:
  • Realtek ALC850 AC97 7.1-channel audio CODEC

• On-Board LAN:
  • Realtek RTL8201CL 10/100mbps LAN

• Storage:
  • Up to 4 EIDE devices
  • Ultra DMA 33/66/100//133
  • Up to 2 SATA2 drives
  • NVIDIA RAID Technology
  • SATA RAID 0, 1

• Form Factor:
  • Micro ATX form factor
  • 24.5cm x 24.5cm ( W x L )
  • 9.6in x 9.6in ( W x L )
