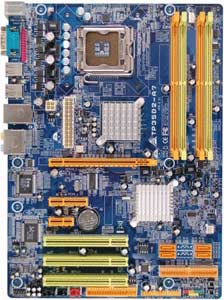

Biostar TP35D2-A7 Motherboard

Supports Intel ® Core2 Quad/ Core2 Duo/Pentium ® D/Pentium ® 4/Pentium ® 400 Series/Celeron ® Processor in the Socket LGA 775, Intel P35 chipset, 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, Audio, SPDIF, ATX Form Factor

Biostar TP35D2-A7 Motherboard, Supports Intel ® Core2 Quad/ Core2 Duo/Pentium ® D/Pentium ® 4/Pentium ® 400 Series/Celeron ® Processor in the Socket LGA 775, Intel P35 chipset, 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, Audio, SPDIF, ATX Form Factor

Internal I/O Interface:
- 1 x Floppy connector
- 3 x USB 2.0/1.1 headers
- 1 x Printer Header
- 1 x S/PDIF out header
- 4 x SATA2 ports
- 1 x IDE Port

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x Serial port
- 1 set 7.1 channel Audio Jack (6 jacks)
- 6 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
On-Board LAN:
- Realtek RTL8110SC - 10/100/1000 Controller
Power Connector :
- 1 x 24pin main power
- 1x 4pin CPU power

Biostar TP35D2-A7 Motherboard

Model:
- Biostar TP35D2-A7 Motherboard

Processor Support:
- Supports Intel Core 2 Quad/Core 2 Duo/Pentium D/Pentium 4/Celeron ® 400 Series/Celeron ® D Processor
- Supports Intel Hyper-Threading Technology
- Socket LGA 775
FSB:
- 800/1066/1333MHz
Chipset:
- Intel P35

Memory:
- Support Dual Channel DDR2 533/667/800/1066 MHz
- 4 x DDR2 DIMM Memory Slot
- Max. Supports up to 8GB Memory
- Support DDR2 1066MHz While Using FSB 1333 CPU
Expansion Slots:
- 1 x PCIe x16
- 1 x PCIe x4
- 1 x PCIe x1
- 3x PCI 32bit/33MHz slots
Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA2 3Gb/s
Audio:
- Realtek ALC888 8+2-Channel HD Audio
- 2/4/5.1/7.1
- Compliant with HD specification
BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
Form Factor:
- ATX Form Factor, 22cm X 30.5cm
