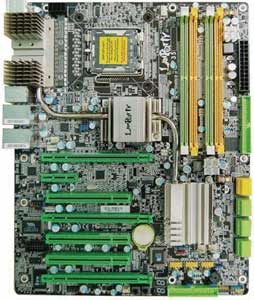

DFI LANPARTY LT P35-T2R Motherboard
Supports Intel® Core Quad, Intel® Core Extreme, Intel® Core Duo, Intel® Pentium® D or Intel® Pentium® 4 processor in the Socket LGA 775, Intel® P35 Express chipset, 3 x PCIe x16 (run x16, x8, x1), 1 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Firewire, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 3 x USB 2.0/1.1 headers
- 1 S/PDIF connector (on the Bernstein audio module)
- 1 connector for the Bernstein audio module
- 1 connector for 1 external IEEE 1394 port
- 1 connector for an external COM port
- 8 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 mini-DIN-6 PS/2 mouse port
- 1 mini-DIN-6 PS/2 keyboard port
- 1 IEEE 1394 port
- 1 set 7.1 channel Audio Jack (6 jacks)
- 6 x USB 2.0/1.1 ports
- 2 x RJ 45 Port
- Other Features :
- ACPI and OS Directed Power Management
- ACPI STR (Suspend to RAM) function
- Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
- Wake-On-LAN and Wake-On-Ring
- RTC timer to power-on the system
- AC power failure recovery
- Monitors CPU/system/chipset temperature
- Monitors 12V /5V/ 3.3V/ Vcore/ Vbat/ 5Vsb/ Vdimm/ Vchip voltages
- Monitors the speed of the cooling fans
- CPU Overheat Protection function monitors CPU temperature during system boot-up
- Audio:
- Realtek ALC885 8-Channel HD Audio CODEC
- 8-channel audio output
- S/PDIF-in/out interface
|
DFI LANPARTY LT P35-T2R Motherboard
- Model:
- DFI LANPARTY LT P35-T2R Motherboard
- Processor Support:
- Supports
Support Intel Core 2 Quad/ Core 2 Extreme/ Core 2 Duo/ Pentium D/ Pentium 4 Processor
- Supports Intel Enhanced Memory 64 Technology (EMT64T)
- Supports Enhanced Intel SpeedStep Technology (EIST)
- Supports Intel Hyper-Threading Technology
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Four 240-pin DDR2 DIMM sockets
- Supports DDR2 667 and DDR2 800 DIMMs
- Delivers up to 12.8Gb/s bandwidth
- Supports dual channel (128-bit wide) memory interface
- Supports unbuffered non-ECC x8 and x16 DIMMs
- Supports up to 8GB system memory
- Expansion Slots:
- 3 PCI Express (PCIE1 at x16, PCIE3 at x4 or x1 and PCIE4 at x1)
- 1 x PCIe x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- Intel ICH9R chip
- Supports up to 6 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1, RAID 0+1 and RAID 5
- JMicron JMB363 PCI Express to SATA and PATA host controller
- Supports up to 2 UltraDMA 100Mbps IDE devices - Supports 2 SATA devices - SATA speed up to 3Gb/s - RAID 0 and RAID 1
- Firewire:
- VIA VT6307
- Supports two 100/200/400 Mb/sec ports
- On-Board LAN:
- Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers
- Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
- BIOS:
- Award BIOS
- CMOS Reloaded
- CPU/DRAM overclocking
- CPU/DRAM/Chipset overvoltage
- 8Mbit flash memory
- Form Factor:
- ATX form factor, 24.5cm x 30.5cm
|
