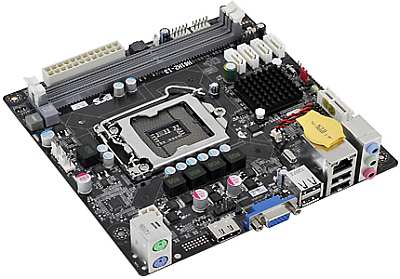

ECS H61H2-I3 (V5.0) Motherboard

• Rear Panel I/O Ports:
  • 4 x USB 2.0 Ports
  • 1 x D-sub(VGA)
  • 1 x HDMI port (co-lay DVI port)
  • 1 x RJ45 LAN connector
  • 1 x Audio port (Line-in, Line-out, Mic-in)
  • 1 x PS/2 keyboard & PS/2 mouse connectors
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin ATX Power Supply Connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 4 x Serial ATA 3Gb/s connectors
  • 1 x COM header
  • 1 x Case Open header
  • 1 x Me_Unlock header
  • 1 x Speaker header
  • 1 x Clear CMOS header
  • 1 x F_Audio header
  • 1 x F_Panel header
  • 1 x TPM header
• Storage:
  • Support by Intel ® H61
    4 x Serial ATA 3.0Gb/s devices
  • Supports NCQ, AHCI and "Hot Plug" functions
• OS Support:
  • Windows XP 32/64bit
  • Windows Vista 32/64bit
  • Windows 7 32/64bit
  • Windows 8 32/64bit
• Bundled Software:
  • ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
  • Free Bundle: Norton Internet Security ,CyberLink Media Suite, Muzee with trial version
• On-Board LAN:
  • Realtek 8111E Gigabit LAN (co-lay Realtek 8105 10/100 Lan)
  • Supports Wake-On-LAN

Motherboard Specifications

• Model:
  • ECS H61H2-I3 (V5.0) Motherboard

• CPU:
  • LGA1155 socket for new 2nd & 3rd Generation Intel ® Core Family/ Pentium ® /Celeron ® Processors
  • Supports Intel ® 22nm CPU
  • Supports Intel ® 32nm CPUs
  • Supports Intel ® Turbo boost 2.0 technology
  • Supports Hyper-Threading Technology CPU
  • Intel ® K Series Unlock CPU Support
  • Intel ® Secure Key (Intel 3rd gen CPU i5 or above)
  • Intel ® OS Guard (Windows 8)
  • AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
  • DMI 20Gb/s
• SYSTEM BIOS:
  • AMI BIOS with 32Mb SPI ROM
  • Supports Multi-language BIOS
  • Supports ECS M.I.B III Utility
  • Supports ACPI 3.0 & DMI
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  • Support Hardware monitor
  • Audio, LAN, can be disabled in BIOS
  • F7 hot key for boot up devices option
  • Support Pgup clear CMOS hotkey (Has PS2 KB Model only)
  • Support AC'97/HD audio auto detect (default)
  • Supports eBLU
  • Supports eDLU
  • Supports eSF
• Chipset:
  • Intel ® H61 Express Chipset
  • Intel ® Identity Protection Technology
  • Supports dual stream HDMI & DP audio
• Memory:
  • Dual-channel DDR3 memory architecture
  • 2 x 240-pin DDR3 DIMM socket support up to 16GB per one DIMM support 8GB
  • Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM
  • Supports for non-ECC memory modules
  • Intel ® Extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
    Note: Please go to ECS website for the latest Memory support list.
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• Expansion Slots:
  • 1 x PCI Express x1 slot
    PCIe Gen3 is supported by Intel 3rd CPU
• On-Board Audio:
  • VIA ® VT1705 6-channel High Definition audio CODEC
  • Compliant with HD audio specification
  • 3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
  • Low Power Consumption
  • Capability for œfull rate BluRay / DVD / HD DVD support.
• On-Board Video:
  • Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
  • Supports Intel ® Quick Sync Video 2.0 (Intel 3rd gen CPU), Advanced Vector Extensions, Clear Video HD Technology, InTru 3D
  • Supports HDMI 1.4a & Premium Audio
  • Integrated DirectX 11 graphics processor
  • Supports OpenGL 3.1(Intel 3rd gen CPU)
  • Supports OpenCL 1.1(Intel 3rd gen CPU)
  • Supports Switchable Graphics
  • Integrated DP with up to 2560x1600 resolution
  • Supports Full HD 1080P Blu-ray / HD-DVD Playback
  • 1 x D-sub(VGA)
  • 1 x HDMI port (co-lay DVI port)

• Form Factor:
  • Mini ITX
  • 170x170mm (6.7 Inch x 6.7 Inch)
