ECS K8M890M-M

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Serial port (COM1)
  • 1 x Parallel port (LPT)
  • 1 x VGA port
  • 1 x Audio port (Line-in, Line-out, Mic-in)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Video:
  • DeltaChrome Integrated Graphics Processor
  • Share Memory: Maximum up to 256MB


• On-Board LAN:
  • VIA® VT6103 10/100 Mbps Fast Ethernet PHY

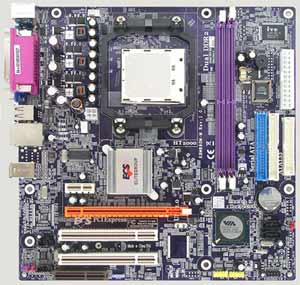

ECS K8M890M-M Motherboard

• Model:
  • ECS K8M890M-M Motherboard

• Processor Support:
  • Supports AMD Athlon 64 FX, AMD Athlon 64 X2 Dual Core/ Athlon 64 / Sempron processor
  • AMD Cool 'n' Quiet Technology
  • Socket AM2


• FSB:
  • 2000 MTS


• Chipset:
  • VIA ® K8M890

• Memory:
  • Dual-channel DDR2 memory architecture
  • 2 x 240-pin DDR2 DIMM socket support up to 16GB
  • Support DDR2 800/667/533/400 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1 slot
  • 2 x PCI 32bit/33MHz slots
  • 1 x CNR slot


• Storage:
  • 2 x IDE connector supporting ATA-133/100/66/33 and up to 4 IDE devices
  • 2 x Serial ATAII 3.0Gb/s devices
  • RAID0, RAID1& RAID 0+1 configuration


• Audio:
  • RealtekALC655 6-channel audio CODEC
  • 2/4/5.1
  • Compliant with AC'97 2.3 specification


• BIOS:
  • AMI BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor, 244mm x 244mm
