ECS P4M900T-M2

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Serial port (COM1)
  • 1 x Parallel port (LPT1)
  • 1 x VGA port
  • 1 x Audio port (Line-in,4x Line-out, SPDIF out)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Video:
  • Integrated Chrome9TM HC IGP
  • Share Memory: Maximum up to 256MB

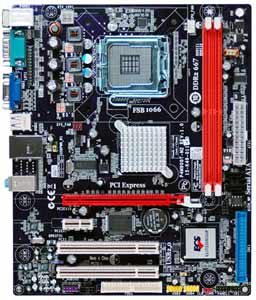

ECS P4M900T-M2 Motherboard

• Model:
  • ECS P4M900T-M2 Motherboard

• Processor Support:
  • SupportsIntel ® Core 2 Quad / Core 2 Extreme / Core 2 Duo /Pentium 4 / Pentium D /Celeron D Processors
  • Support Hyper-Threading Technology
  • Socket LGA 775


• FSB:
  • FSB 1066/800/533 MHz


• Chipset:
  • VIA ® P4M900CD

• Memory:
  • Single-channel DDR2 memory architecture
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support 667/533/400 DDR2 SDRAM


• Expansion Slots:
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • Support by VIA ® VT8237S
  • 1 x UltraDMA 133/100/66 for up to 2 PATA device
  • 2 xSATAII 3.0Gb/s devices
  • Support SATA RAID 0, 1


• Audio:
  • VIA ® VT1708A 6-channel High Definition audio CODEC
  • 2/4/5.1


• On-Board LAN:
  • VIA ® VT6103L 10/100 Mbps Fast Ethernet PHY


• BIOS:
  • AMI BIOS with 4Mb
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 2.0 specification


• Form Factor:
  • Micro-ATX Form Factor, 244mm x 200mm
