• Form Factor:
  • Micro ATX

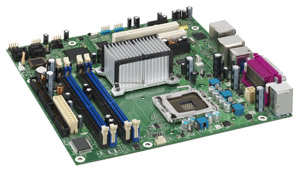

INTEL D945GTP Specifications

• Model:
  • INTEL D945GTP

• Processor Support:
  • Support for an Intel ® Pentium ® D Processor in an LGA775 socket with an 800 MHz system bus
  • Support for an Intel ® Pentium ® 4 Processor in an LGA775 socket with an 800 MHz system bus
  • Support for an Intel ® Celeron ® D Processor in an LGA775 socket with a 533 MHz system bus

• Chipset:
  • Intel ® 945G Chipset

• Memory:
  • Four 240-pin DDR2 SDRAM DIMM sockets
  • Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
  • Support for up to 4 GB of system memory

• Expansion Slots:
  • The board provides one of the following:
  • Two PCI Conventional* bus connectors
  • One PCI Express* x1 bus add-in card connector
  • One PCI Express x16 bus add-in card connector

• On-Board Audio:
  • Intel ® High Definition Audio subsystem in one of the following configurations:
  • 8-channel (7.1) audio subsystem with five analog audio outputs and one S/PDIF optical digital audio output using the Sigmatel 9223* audio codec
  • 6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220* audio codec

• On-Board Video:
  • Intel ® GMA 950 onboard graphics subsystem

• On-Board LAN:
  • The board provides one of the following:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 82573V/82574V
  • Gigabit Ethernet Controller Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 82573V/82574V Gigabit Ethernet Controller


• Rear Panel I/O Ports:
  • Eight USB 2.0 ports
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
