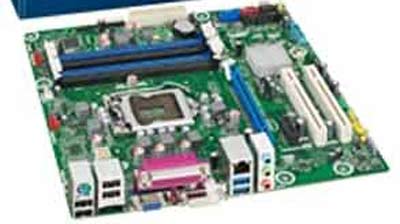

Intel DB75EN Motherboard

• Storage:
  • 1 e-SATA 6.0Gb/s
  • 4 SATA 3.0 Gb/s

• Rear Panel I/O Ports:
  • One Serial ATA 6.0 Gb/s port
  • Four SATA 3.0 Gb/s ports with one eSATA capable port
  • USB 2.0 Configuration (Back + Internal): 4&4
  • USB 3.0 Configuration (Back + Internal): 2&2
  • Serial Port via Internal Header: YES
  • Audio (back channel + front channel): 6+2
  • # of PS2 Ports: 1


• BIOS:
  • ID String: ENB7510H.86A with Intel ® Fast Boot Technology


• Special Features:
  • Intel ® Anti-Theft Technology: YES
  • Intel ® HD Audio Technology: YES


Motherboard Specifications

• Model:
  • Intel DB75EN Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket
  • Intel ® Core i5 processor series in an LGA1155 socket
  • Intel ® Core i3 processor series in an LGA1155 socket

• Chipset:

  • Intel ® B75 Express Chipset

• Memory:
  • Four  240-pin DDR3 SDRAM dual in-line memory module (DIMM) sockets
  • Support for DDR3 1600/1333 MHz DIMMs
  • Support for up to 32 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 1 connector
  • Two PCI conventional bus connectors

• On-Board Video:
  • Discrete graphics support for PCI Express 3.0 x16 add-in graphics card
  • DVI-D and VGA for processors with Intel ® HD Graphics
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC692* audio codec
  • Three stack analog audio ports
  • Front panel mic/headphone header and internal speaker header

• On-Board LAN:
  • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel ® 82579LM Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Micro-ATX
  • 9.6" x 9.6"
