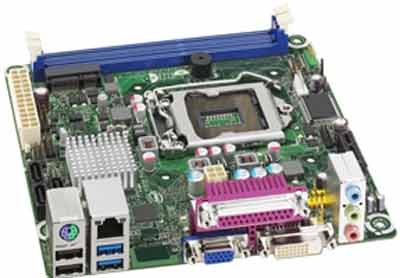

Intel DH61DL Motherboard

• Storage:
  • 3 SATA 3.0 Gb/s


• Rear Panel I/O Ports:
  • Two USB 3.0 ports
  • Up to eight USB 2.0 ports
  • Three Serial ATA 3.0 Gb/s ports
  • One serial header
  • One parallel port
  • One PS/2 Port
  • Serial Port via Internal Header: YES
  • Audio (back channel + front channel): 6


• BIOS:
  • ID String: BEH6110H.86A with Intel Fast Boot Technology

• Special Features:
  • Intel ® HD Audio Technology: YES


Motherboard Specifications

• Model:
  • Intel DH61DL Motherboard


• Processor Support:
  • Intel ® Core i5 processor series in an LGA1155 socket
  • Intel ® Core i3 processor series in an LGA1155 socket
  • Max TDP: 95W


• Chipset:

  • Intel ® H61 Express Chipset

• Memory:
  • Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 16 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 1 connectors
  • One PCI Express Mini-card slot

• On-Board Video:
  • DVI-D and VGA connectors for processors with Intel ® HD Graphics
  • Dual Display Capable: YES


• On-Board Audio:
  • Intel ® High Definition Audio (Intel ® HD Audio) subsystem in the following configuration :6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec

• On-Board LAN:
  • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel ® 82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Mini-ITX
  • 6.57" x 6.69"
