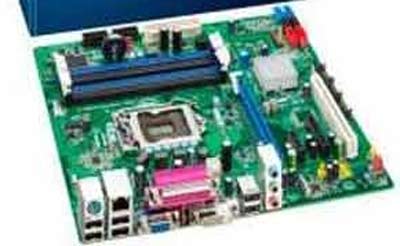

Intel DQ67OW Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 2 e-SATA Ports

  • RAID Configuration: 0,1,5,10

• Rear Panel I/O Ports:


  • Up to fourteen USB 2.0 ports
  • Four SATA 3.0 Gb/s ports with two eSATA capable ports
  • Serial Port via Internal Header: YES
  • # of PS2 Ports: 1


• BIOS:
  • ID String: SWQ6710H.86A with Intel Fast Boot Technology

• Special Features:
  • Intel ® Virtualization Technology for Directed I/O (VT-d): YES
  • Intel ® Trusted Execution Technology: YES
  • AES New Instructions: YES
  • Intel ® vPro Technology: YES
  • Intel ® Active Management Technology: YES
  • Intel ® AMT Version: 7.0
  • TPM: YES
  • Intel ® TPM Version: 1.2
  • Intel ® HD Audio Technology: YES
  • Intel ® Matrix Storage Technology: YES
  • Intel ® Fast Memory Access: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DQ67OW Motherboard


• Processor Support:
  • Intel ® Core i7 vPro processor series in an LGA1155 socket
  • Intel ® Core i5 vPro processor series in an LGA1155 socket
  • Max TDP: 95W


• Chipset:

  • Intel ® Q67 Express Chipset

• Memory:
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 32 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 16 bus add-in card connector
  • One PCI Express x 4 connector
  • One PCI Express x 1 connector
  • One PCI Conventional bus connector

• On-Board Video:
  • DVI-D and VGA graphics connectors for processors with Intel ® HD Graphics
  • Integrated Graphics: YES
  • Intel ® Clear Video Technology: YES
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888* audio codec

• On-Board LAN:
  • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel ® 82579LM Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • Micro-ATX
  • 9.6" x 9.6"
