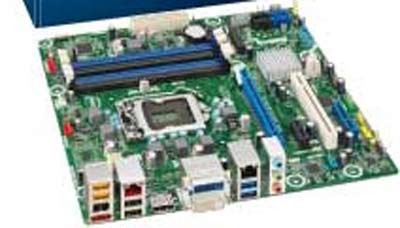

Intel DQ77MK Motherboard

• Storage:
  • 6 SATA Ports
  • Raid Configuration: 0,1,5,10

• Rear Panel I/O Ports:
  • Four USB 3.0 ports (2 external ports, 2 via internal headers)
  • Eight USB 2.0 ports (4 external ports with 2 ports supporting high-power charging, 4 via internal headers)
  • Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 3 internal connectors (3.0 Gb/s), 1 external port (3.0 Gb/s) supporting eSATA
  • Two IEEE 1394a ports (1 external port, 1 via internal header)
  • Audio (back channel + front channel): 6&2
  • Serial Port via Internal Header: YES


• Special Features:
  • Firewire
  • Port Qty.: 1 & 1

  • Extended Life Program (XLP): YES
  • Intel ® vPro Technology: YES
  • Intel ® Active Management Technology: YES
  • Intel ® AMT Version: 8.0
  • Intel ® Remote Wake Technology: YES
  • Intel ® Remote PC Assist Technology: YES
  • Intel ® Anti-Theft Technology: YES
  • TPM: YES
  • Intel ® TPM Version: 1.2
  • Intel ® HD Audio Technology: YES
  • Intel ® Matrix Storage Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DQ77MK Motherboard


• Processor Support:
  • Intel ® Core i7, Intel ® Core i5, and Intel ® Core i3 vPro processor series in the LGA1155 package
  • Max TDP: 95W


• Chipset:

  • Intel ® Q77 Express Chipset

• Memory:
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for up to DDR3 1600/1333 MHz

  • Support for up to 32 GB of system memory
  • Memory Channel: 2


• Expansion Slots:
  • One PCI Express* 3.0 x16 bus add-in card connector
  • One PCI Express* 2.0 x4 connector (open-ended with retaining clip)
  • One PCI Express* 2.0 x1 connector
  • Two PCI* conventional bus connectors
  • One PCI Express* full length mini connector (support mSATA)

• On-Board Audio:
  • Intel ® High Definition Audio (Intel ® HD Audio) subsystem in the following configuration: Eight-channel (5.1+2 dual-stream) audio subsystem with analog audio outputs w/optical S/PDIF out port

• On-Board LAN:
  • Dual Gigabit Intel ® (10/100/1000 Mbits/sec) LAN

• Form Factor/Dimensions:
  • Micro ATX
  • 9.6" x 9.6"
• BIOS:
  • ID String: MKQ7710H.86A
