Intel DX79SR

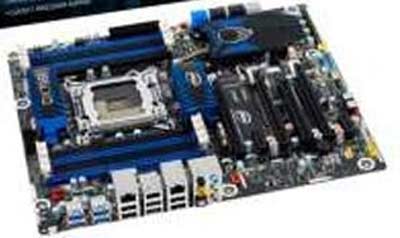

Intel DX79SR Motherboard

• Storage:
  • SATA (8)
  • RAID Configuration: 0, 1, 5, 10

• Rear Panel I/O Ports:
  • 6 SuperSpeed USB 3.0 ports (4 external ports, 2 via internal header)
  • 14 USB 2.0 ports (6 external ports, 8 via internal headers)
  • Eight   Serial ATA ports: 4 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s)
  • Two IEEE 1394a ports (1 external port, 1 via internal header)
  • Consumer Infrared receiver and emitter
  • S/PDIF Out Connector: (1)
  • Integrated Wifi: BT/Wifi dongle

• BIOS:
  • ID String: SIX7910J.86A

• Special Features:
  • Firewire
  • Port Qty.: (2)
  • Consumer Infrared Headers: YES


• Accessories:
  • Wi-Fi/BT module included (BOX only)

Motherboard Specifications

• Model:
  • Intel DX79SR Motherboard


• Processor Support:
  • Intel ® Core i7 Extreme Edition processor series in the LGA2011 socket

• Chipset:

  • Intel ® X79 Express Chipset

• Memory:
  • Eight 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for up to DDR3 2400+ O.C.

  • Support for up to 64 GB of system memory

• Expansion Slots:
  • Three PCI Express 3.0 x16 bus add-in card connectors
  • Two PCI Express x1 connectors
  • One PCI* Conventional Bus Connector

• On-Board Audio:
  • Intel ® High Definition Audio1  (Intel ® HD Audio) subsystem in the following configuration: 10-channel (7.1+2 independent multi-streaming) audio subsystem with five analog audio outputs w/optical S/PDIF out port

• On-Board LAN:
  • Dual Gigabit Intel ® (10/100/1000 Mbits/sec) LAN subsystem using two Intel ® Gigabit Ethernet Controllers

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
