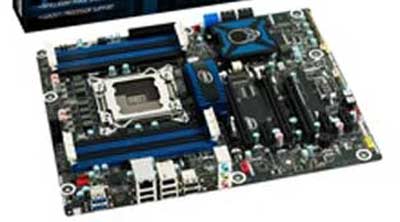

Intel DX79TO Motherboard

• Storage:
  • 4 SATA Ports
  • 2 SATA 6.0Gb/s Ports

  • RAID Configuration: 0.1.5.10

• Rear Panel I/O Ports:
  • Two SuperSpeed USB 3.0 ports (2 external ports)
  • 14 USB 2.0 ports (6 external ports, 8 via internal headers)
  • Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s)
  • Two IEEE 1394a ports (1 external port, 1 via internal header)
  • Consumer Infrared receiver and emitter

• BIOS:
  • ID String: SIX7910J.86A

• Special Features:
  • TPM module built in
  • Firewire
  • Port Qty.: 2
  • Intel ® Matrix Storage Technology: Intel ® Matrix Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Predecessor to Intel ® Rapid Storage Technology

Motherboard Specifications

• Model:
  • Intel DX79TO Motherboard


• Processor Support:
  • Intel ® Core i7 Extreme Edition processor series in the LGA2011 socket

• Chipset:

  • Intel ® X79 Express Chipset

• Memory:
  • Eight 240-pinDDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for up to DDR3 1600+ O.C.

  • Support for up to 64 GB of system memory
  • Memory Channel: 4


• Expansion Slots:
  • Two PCI Express* 3.0 x16 bus add-in card connectors
  • Three PCI Express x1 connectors
  • One PCI Conventional* bus connector

• On-Board Audio:
  • 6-channel (5.1+2 independent multi-streaming) audio subsystem with three analog audio outputs

• On-Board LAN:
  • Intel ® Gigabit (10/100/1000 Mb/s) LAN subsystem using Intel ® Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
