• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

• Form Factor:
  • 9.6" x 9.6"
  • Micro-ATX Form Factor

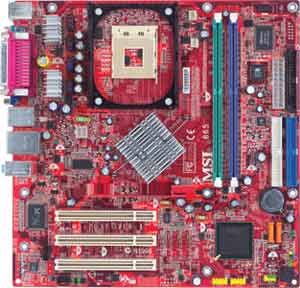

MSI 865GVM2-LS Specifications

• Model:
  • MSI 865GVM2-LS

• Processor Support:
  • Supports Socket 478 for Intel ® Pentium 4 (Northwood/Prescott) processor
  • Supports up 3.2 GHz/FSB 800
  • Supports FSB 400/533/800 MHz

• FSB:
  • Support 400* (Northwood only)/533/800MHz Intel NetBurst micro-architecture bus

• Chipset:
  • Intel ® Springdale 865GV Chipset
  • Intel ® ICH5 Chipset

• Memory:
  • Supports 2 unbuffered DIMM of 2.5 Volt DDR SDRAM
  • Supports up to 2GB memory size
  • Support Single or Dual Channel DDR 400*/333/266 MHz and up

• Expansion Slots:
  • Three PCI 2.2 32-bit Master PCI Bus slots

• On-Board Audio:
  • 6 Channels software audio codec C-Media 9739A
  • Compliance with AC97 v2.2 Spec

• On-Board Video:
  • Intel Extereme Graphic 2: Also knowns as DVMT2 (Dynamic Video Memory Technology 2.0), it will assign up to 64MB with total system memory 192 MB or above

• On-Board LAN:
  • Realtek ® 8100C
  • Integrated Fast Ethernet MAC and PHY in one chip
  • Supports 10Mb/s, 100Mb/s
