• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 VGA port
  • 1 HDMI port (optional)
  • 1 DVI-D port (optional)
  • 1 IEEE1394 port (optional)
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 6 audio jacks


• Audio:
  • Controlled by Realtek ALC888
  • Supports 7.1 channels audio out
  • Compliant with Azalia Spec

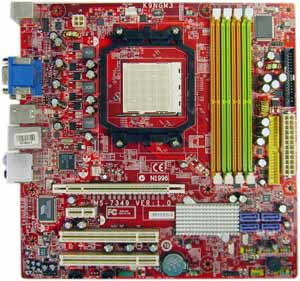

MSI K9NGM3-FIH Motherboard

• Model:
  • MSI K9NGM3-FIH Motherboard

• Processor Support:
  • AMD ® Athlon 64/ 64X2 & Sempron in the socket AM2 package
    (For the latest information about CPU, please visit https://global.msi.
    com.tw/index.php?func=cpuform)
  • HyperTransport supporting speed up to 1 GHz (2000MT/s)


• Chipset:
  • nVidia ® MCP68PV

• Memory:
  • DDR2 533/667/800 SDRAM (240pin/ non-ECC)
  • 4 DDR2 DIMMs (8GB Max)
  • Supports up to 2GB memory size without ECC


• Expansion Slots:
  • 1 PCI Express x 16 slot
  • 1 PCI Express x 1 slot
  • 2 PCI slots, support 3.3V/ 5V PCI bus Interface

• On-Board LAN:
  • Supports Giga LAN 10/100/1000 Fast Ethernet by Realtek RTL 8211BL


• IEEE1394:
  • Support up to 2 IEEE 1394 ports, transfer rate is up to 400Mbps
  • Controlled by VIA VT6308P chipset


• Storage:
  • 1 IDE port
  • Supports Ultra DMA 66/100/133, PIO & Bus Master operation
    mode
  • 4 SATA ports support 4 SATA devices
  • Supports storage and data transfers at up to 300 MB/s
    RAID
  • SATA1~4 support RAID 0/ 1/ 0+1/ 5 or JBOD mode


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.


• Form Factor:
  • Micro-ATX
  • (24.4 cm X 24.4 cm)
