• BIOS:
  • 4Mb FWH
  • Provides DMI 2.0 WFM2.0, WOL, WOR chassis instruction and SMBus for system management.

• Form Factor:
  • 9.6" x 9.6"
  • Micro-ATX Form Factor

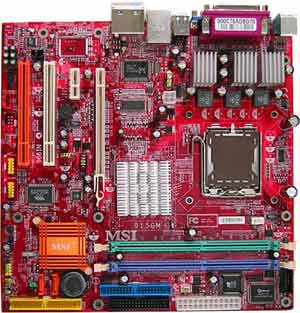

MSI 915GM-FR Specifications

• Model:
  • MSI 915GM-FR

• Processor Support:
  • Supports Intel ® Pentium 4 / Celeron D processors in LGA775 package
  • Supports up to Pentium 4 5XX and Celeron D 3XX sequence processor
  • CPU VR support Intel 2004 performance FMB
  • Supports Intel Hyper-Threading Technology

• FSB:
  • Support 800/533MHz FSB

• Chipset:
  • Intel ® Grantsdale 915G Chipset
  • Intel ® ICH6 Chipset

• Memory:
  • Supports 2 unbuffered DIMM of 2.5 Volt DDR SDRAM without ECC
  • Supports up to 2GB memory size
  • Supports only X8, X16 DDR devices with 2-bank
  • Support Dual Channel DDR 400/333MHz

• Expansion Slots:
  • One PCI Express 16X slot
  • One PCI Express 1X slot
  • Two PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)

• On-Board Audio:
  • 8-channel audio codec C-Media 9880L
  • Compliance with Azalia 1.X spec
  • Support Multi-Streaming function
  • Support Universal Audio Jack (only Front Audio Jack)

• On-Board LAN:
  • Realtek RTL 8110SB
