P4M900M3-L

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 VGA port
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 1 Audio jack (5-in-1), coaxial/fiber SPDIF out


• Video:
  • S3 Graphics Chrome9 HC Integrated Graphics core


• Audio:
  • Realtek ALC888 8 channel audio codec
  • Compliance with Azalia 1.x HD spec.


• Form Factor:
  • Micro-ATX Form Factor
  • 9.61 in. (L) x 7.9 in.(W)

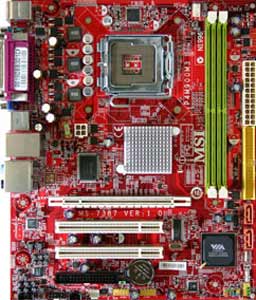

MSI P4M900M3-L Motherboard

• Model:
  • MSI P4M900M3-L Motherboard

• Processor Support:
  • Supports Socket 775 for Intel Celeron D 3XX, P4 5XX, 6XX, P4EE, Pentium D 8XX, 9XX & Core 2 Duo processors. (without Pentium EE 840)
  • Supports Intel Hyper-Threading technology
  • Supports Intel EIST Technology


• FSB:
  • 1066/800/533MHz


• Chipset:
  • VIA ® P4M900

• Memory:
  • Advanced 64-bit SDRAM controller supporting DDRII
  • Supports up to 2GB memory size.
  • Supports DDRII 667/533/400 memory interface.


• Expansion Slots:
  • 1x PCI Express X16 slot (supports PCI Express Bus specification v1.0a compliant)
  • 2x PCI slots (support 3.3v/5v PCI bus interface).

• On-Board LAN:
  • Realtek RTL8201CL Chipset
  • Supports 10Mb/s and 100Mb/s auto-negotiation operation
  • Compliance with PCI v.2.2 standard
  • Supports ACPI power management


• Storage:
  • An IDE Controller on the VT8237S chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
  • Can connect up to 4 IDE devices
  • Serial ATA 300 (SATAII) controller integrated in VT8237S
  • Transfer rate is up to 300MB/s
  • Can connect up to 2 Serial ATA drives (supports RAID 0 or 1)


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
