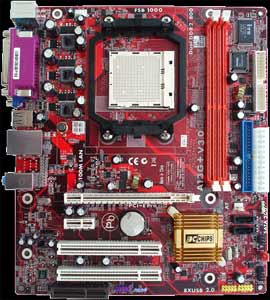

PC CHIPS
A13G+ (V3.0)
Motherboard
Socket AM2 for AMD Athlon 64 FX/Athlon 64 x2 Dual-core/Athlon 64/Sempron processor, NVIDIA MCP61S chipset, 1 PCI-E 8X, 1 PCI-E 1X, 2 x PCI, 1 x CNR, DDR2 DIMM, LAN, USB, IDE, SATA, Video, Audio, Micro ATX Form Factor |
|
- Internal I/O Interface:
- 24-pin ATX power supply connector
- 4-pin ATX 12V power supply connector
- 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
- 1 x IrDA for SIR header
- 1 x CD in header
- 1 x Speaker header
- 2 x USB 2.0 header support additional 4 USB2.0 ports
- 1 x Front panel switch/LED header
- CPU / SYS FAN headers
- 2 x Serial ATA connectors
- 1 x Front panel audio header
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel Port
- 1 x Serial Port
- 1 x VGA port
- 4 x USB 2.0 Ports
- 1 x RJ 45 Port
- 1 x Audio I/O (Line-in, Line-out and Mic-in)
|
PC CHIPS
A13G+ (V3.0)
Motherboard
- Model:
- PC CHIPS
A13G+ (V3.0)
Motherboard
- Processor Support:
- Socket AM2 for AMD Athlon 64 FX/Athlon 64 x2 Dual-core/Athlon 64/Sempron processor
- FSB:
- Chipset:
- NVIDIA MCP61S Single chipset (co-lay MCP61V)
- Memory:
- Dual-channel DDR2 memory architecture
- 2 x 240-pin DDR2 DIMM sockets support up to 16 GB
- Support DDR2 800/667/533/400 DDR2 SDRAM
- Expansion Slots:
- 1 x PCI Express Pro slot (runs in x8 mode)
- 1 x PCI Express x 1 slot
- 2 x PCI slots
- 1 x Azalia CNR
- On-Board LAN:
- Boardcom AC131 10/100Mbps Fast Ethernet Phy
- Storage:
- 1 x Ultra DMA 133/100/66
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- 2 Serial ATA
- Video:
- Embedded Geforce 6100-based with 128MB share memory
- Audio:
- Realtek ALC660 6-channel High Definition audio
- BIOS:
- AMI 4Mb Flash ROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification
- Form Factor:
- Micro-ATX Form Factor, 244*214mm
|
