• Rear Panel I/O Ports:
  • 1 RJ45 LAN ports
  • 2x USB rear ports (6 USB 2.0 Compliant / 1.1 Compliant)
  • 1x VGA Port
  • 1x Line In / Front L & R / Center & Sub-Woofer/ Surround L & R / Side Surround L & R / Line Out / Microphone ports
  • 1 Fast UART 16550 serial port
  • 1 ECP / EEP Parallel Port
  • Stacked PS/2 keyboard and mouse ports


• Manageability:
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Keyboard Wakeup from Soft-Off
  • Suspend to RAM (STR)
  • Internal/External modem remote ring-on
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio settings (via BIOS)
  • Total of three 4-pin fan headers
  • Status monitor with firmware/software speed control
  • 3x fans with tachometer status monitoring
  • Support 3-pin PWM fans (with speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • CPU Overheat LED, System Overheat LED
  • +3V standby alert LED
  • Thermal Monitor 2 (TM2) Support
  • Chassis intrusion detection, Chassis intrusion header
  • Suspend-state indicator LED
  • Super Doctor III, Watch Dog, NMI

Supermicro PDSBA+ Specifications

• Model:

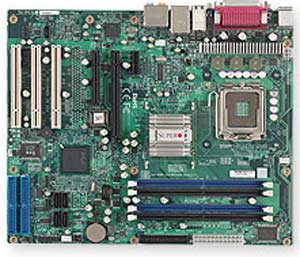

  • Supermicro PDSBA+ Motherboard

• Processor Support:
  • Single LGA775 ZIF Socket
  • Supports an Intel ® Core 2 Quad processor
  • Supports an Intel ® Core 2 Duo processor
  • Supports an Intel ® Pentium ® D (Dual Core) processor
  • Supports an Intel ® Pentium ® 4 processor
  • Supports an Intel ® Celeron ® D processor with 256KB L2 Cache
  • Hyper-Threading (HT) capable
  • 1066 / 800 / 667 MHz system bus

• Chipset:
  • Intel ® G965
  • ICH8 + Intel ® 82573L


• Memory:
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB of unbuffered, non-ECC DDR2 800/667/533MHz memory (Single / Dual Channel)
  • DDR2 800/667/533MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only


• Expansion Slots:
  • 1 (x16) PCI-e slot (intended for Graphics applications)
  • 1 (x4) PCI-e slot (using a x8 physical slot)
  • 1 (x1) PCI-e slot
  • 3x 32-bit 33MHz PCI Slot

• On-Board LAN:
  • Intel ® 82573L (Single Port) Gigabit PCI-Express Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Storage:
  • Intel ® ICH8 SATA (3Gbps) controller built-in
  • Four SATA hard drives supported
  • RAID 0, 1, 5, 10 support (Windows Only)
  • One EIDE channel supports up to two UDMA IDE devices
  • IDE Master / Slave 2 ports
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100


• Video:
  • Integrated gfx graphics core


• Audio:
  • Realtek high quality 7.1 channel audio


• BIOS:
  • 8Mb Flash EEPROM with PhoenixBIOS ®
  • Winbond W39V080FAP
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3, APM 1.2
  • BIOS Rescue Hot Keys
  • USB Keyboard support
  • SMBIOS 2.3
  • Hardware BIOS virus protection


• Form Factor:
  • ATX
  • 11.5" x 9.5 ", (29.2cm x 24.0cm)
