• Rear Panel I/O Ports:
  • 1 RJ45 LAN ports
  • 2x rear ports
  • 1 Fast UART 16550 serial port
  • 1x VGA Port
  • 1x ECP / EEP Parallel Por
  • Stacked PS/2 keyboard and mouse ports


• Manageability:
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Internal/External modem remote ring-on
  • Suspend to RAM (STR)
  • Monitors for CPU Cores Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio
  • Total of six 4-pin fan headers
  • Status monitor with firmware/software speed control
  • 6 fans with tachometer monitoring
  • Support 3-pin PWM fans (with speed control)
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
  • Thermal Monitor 2 (TM2) support
  • CPU / System Overheat LED
  • Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • Optional IPMI (Intelligent Platform Management Interface) 2.0
  • Super Doctor III, Watch Dog, NMI, W83793 H/W Monitor

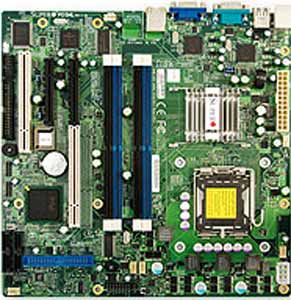

Supermicro PDSML-LN1+ Specifications

• Model:
  • Supermicro PDSML-LN1+ Motherboard

• Processor Support:
  • Single LGA775 ZIF Socket
  • Supports a Quad-Core Intel ® Xeon ® 3200 Series processor
  • Supports a Dual-Core Intel ® Xeon ® 3000 Series processor
  • Supports an Intel ® Core2 Quad Series processor
  • Supports an Intel ® Core2 Duo Series processor
  • Supports a Dual-Core Intel ® Pentium ® D processor
  • Supports an Intel ® Pentium ® Extreme Edition processor
  • Supports an Intel ® Pentium ® 4 processor
  • Supports an Intel ® Celeron ® D processor


• FSB:
  • 1333 / 1066 / 800 MHz system bus

• Chipset:
  • Intel 3000 (Mukilteo-2) chipset
  • ICH7R + PXH-V + Intel ® 82573V + Intel ® 82573L


• Memory:
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB of unbuffered, non-ECC(Dual Channel)
  • DDR2 667/533MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only


• Expansion Slots:
  • 1 (x8) PCI-Express or
  • 1x 32-bit 33MHz PCI Slot
  • 1 (x4) PCI-e (using x8) slot
  • 1x 32-bit 33MHz PCI (5V) slots

• On-Board LAN:
  • Single-port Intel ® 82573L Gigabit PCI-Express Ethernet (Vidalia)
  • Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output


• Storage:
  • Intel ® ICH7R SATA controller built-in
  • RAID 0, 1, 5, 10 support (Windows Only)
  • Four Serial ATA ports (3 Gbps performance)
  • Four SATA hard drives supported
  • One EIDE channel supports up to two UDMA IDE devices


• Video:
  • On-board XGI Volari Z7 graphics


• Other Features:
  • RoHS Compliant 6/6, Pb Free
  • FCC Class B


• BIOS:
  • 8Mb Flash EEPROM with Phoenix BIOS ®
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • USB Keyboard support
  • SMBIOS 2.3


• Form Factor:
  • MicroATX (uATX)
  • 9.6" width x 9.6 " length , (24.4cm x 24.4cm), 6 layers
