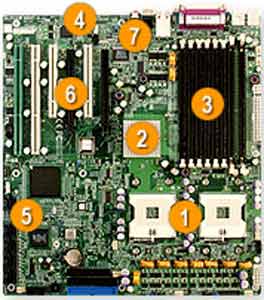

Supermicro X6DAT-G Motherboard

Dual 604 Socket for Intel 64bit Xeon, Intel 7525, SATA, IDE, RAID, USB, AUDIO, LAN, 8 DIMM, 2 PCI Express 16x, 2 PCI-X, 2 PCI Support.

Supermicro X6DAT-G Dual 604 Socket for Intel 64bit Xeon, Intel 7525, SATA, IDE, RAID, USB, AUDIO, LAN, 8 DIMM, 2 PCI Express 16x, 2 PCI-X, 2 PCI Support.

Internal I/O Interface:
- Adaptec AIC-8130: Marvell ® 88SX6041 4-port Hercules-2, rev B2, SATA Controller
- 4-port SATA
  (supports up to 4 Drives)
  RAID 0, 1, JBOD Supported
  (for 4 HDD)
- Intel ® 6300ESB 2-port controller
  Two SATA ports (supports up to 2 drives)
- RAID 0, 1, JBOD Supported
  (for 2 HDD)
Storage/RAID:
- Six SATA ports
- Supports up to six SATA drives
- Support for Zero-Channel RAID with Adaptec 2020SA (SATA) ZCR Card: 1A, 3.3V, Low Profile 2.5" x 6.6"
- (Card not included)
- Dual EIDE channels support up to four UDMA IDE devices
- Supports ATA/100
- 1 Floppy controller; 1.44 MB, 3-mode support

BIOS:
- 8Mb Flash EEPROM with Phoenix ® BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.2
- ACPI 1.0
- USB Keyboard Support
- SMBIOS 2.3
- RTC (Real Time Clock) Wakeup
On-Board Audio:
- AC'97 audio CODEC
- high quality 6-channel sound

On-Board LAN:
- 1x Intel ® 82541PI Single-port Gigabit Ethernet
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Form Factor:
- Extended ATX
- 12" x 13.05" (30.5cm x 33.2cm)

X6DAT-G Specifications

Model:
- Supermicro X6DAT-G

Processor Support:
- Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
- 800 MHz system bus
- Supports 64-bit Operating Systems
- Supports 32-bit Operating Systems

Chipset:
- Intel E7525
FSB:
- 800 MHz
Memory:
- Eight 184-pin DIMM sockets
- Supports up to 16 GB DDR 333 MHz memory or
- Supports up to 32 GB DDR 266 MHz memory
- Dual channel memory bus
- Memory must be populated in pairs
Expansion Slots:
- 1 (x16) PCI Express slot
- 1 (x8) PCI Express signal on a (x16) slot
- 2x 64-bit 66MHz PCI-X (3.3V) slots
- 2x 32-bit 33MHz PCI (5V) slots

Manageability:
- Monitors for CPU Cores (+1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, & VBAT
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
- Total of eight 4-pin fan headers
- Status monitor for speed control
- Status monitor with firmware/software on/off control
- Support 3-pin fans (without speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connector
- Temperature Monitoring for CPU, chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- Thermal Control for 8x Fan Connectors
- I2C temperature sensing logic
- CPU / System Overheat LED
- Suspend-state indicator LED
- SATA LEDs
- Power Fail LED
- HDD LED
- NIC LED
- Power LED
- Fan Fail LEDs
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
