Supermicro X6DH8-XG2

Part # 108418

Condition : New- Retail Box

| Warranty: 365 days

Brand : Supermicro

| Log in to add review

Rate this product:

Quantity: Out of Stock

Note: Click “Notify”, enter your email, and get alerted when the item is back in stock.

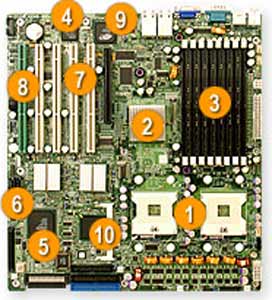

Supermicro X6DH8-XG2 Motherboard

Dual 604 Socket for Intel 64-bit Xeon, Intel E7520, 8 DIMM, 1 PCI Express, 5 PCI-X, SATA, IDE, USB, Video, LAN Support.

Supermicro X6DH8-XG2 Dual 604 Socket for Intel 64-bit Xeon, Intel E7520, 8 DIMM, 1 PCI Express, 5 PCI-X, SATA, IDE, USB, Video, LAN Support.

Internal I/O Interface:
- 1 Floppy controller; 1.44 MB, 2.88 MB
Storage/RAID:
- Two Serial ATA ports
- Two SATA hard drives supported
- Dual EIDE channels support up to four UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100

BIOS:
- 8Mb Flash EEPROM with Phoenix ® BIOS
- BIOS Features Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
On-Board Video:
- ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Rear Panel I/O
- 2x USB rear ports
- 3x USB internal headers
- USB 2.0 Compliant / 1.1 Compliant
- 1x VGA Port
- 2x RJ45 LAN ports
- PS/2 keyboard and mouse ports
- 2 Fast UART 16550 serial port

X6DH8-XG2 Specifications

Processor Support:
- Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
- 800 MHz system bus
- Supports 64-bit Operating Systems
- Supports 32-bit Operating Systems

Chipset:
- Intel E7520
FSB:
- 800MHz FSB
Memory:
- Eight 240-pin DIMM sockets
- Supports up to 16 GB DDRII 400MHz memory
- Dual channel memory bus
- Memory must be populated in pairs
Expansion Slots:
- 1 (x8) on a (x16) PCI-e slot
- 3x 64-bit 133MHz PCI-X (3.3V) slots
- 2x 64-bit 100MHz PCI-X (3.3V) slots

On-Board LAN:
- Intel ® 82546GB Dual Port Gigabit Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Form Factor:
- Extended ATX
- 12" x 13.05" (30.5cm x 33.2cm)
Manageability:
- Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.83V-0.63V
- Total of four 4-pin and four 3-pin fan headers
- 8x fans with status monitoring
- Status monitor with firmware/software on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connector
- Temperature Monitoring for CPU, chassis, environment
- CPU thermal trip support
- Thermal Monitor 2 support
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- SDDC
