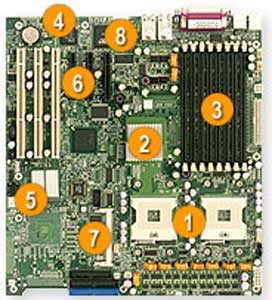

Supermicro X6DHE-G2+

• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • BIOS Features Plug and Play (PnP)
  • SMBIOS 2.3
  • APM 1.2
  • DMI 2.1
  • ACPI 1.0
  • PCI 2.2
  • PCI-X 1.0
  • Fan Speed Control

• On-Board Video:
  • ATI Rage XL SVGA PCI video controller
  • 8 MB of video memory

• Manageability
  • Monitors for CPU Cores, +3.3V, +5V, ±12V & +3.3V Standby
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
  • Total of four 4-pin and four 3-pin fan headers
  • 8x fans with status monitoring
  • Status monitor with firmware/software on/off control
  • Low noise fan speed control
  • 4x Pulse Width Modulated (PWM) fan connector
  • Temperature Monitoring for CPU, chassis, environment
  • CPU thermal trip support
  • Thermal Monitor 2 support
  • CPU Overheat LED
  • System Overheat LED
  • Suspend-state indicator LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC


X6DHE-G2+ Specifications

• Model:
  • Supermicro X6DHE-G2+

• Processor Support:
  • Dual 604-pin FC-mPGA4 Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
  • 800 MHz system bus
  • Supports 64-bit Operating Systems
  • Supports 32-bit Operating Systems

• Chipset:
  • Intel ® E7520 chipset

• FSB:
  • 800 MHz

• Memory:
  • Eight 240-pin DIMM sockets
  • Supports up to 16 GB DDRII 400MHz memory
  • Dual channel memory bus
  • Memory must be populated in pairs

• Expansion Slots:
  • 2 (x8) PCI-e slots
  • 1 (x4) PCI-e slot
  • 1x 64-bit 133MHz PCI-X (3.3V) slot
  • 2x 64-bit 100MHz PCI-X (3.3V) slots


• On-Board LAN:
  • Intel ® 82546GB Dual Port Gigabit Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Rear Panel I/O Ports:
  • 2x RJ45 LAN ports
  • 2x USB rear ports
  • USB 2.0 Compliant / 1.1 Compliant
  • 1x VGA Port
  • PS/2 keyboard and mouse ports
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header
  • 1 ECP/EEP parallel port

• Form Factor:
  • Extended ATX
  • 12" x 13.05" (30.5cm x 33.2cm)
