Supermicro X9DAL-i

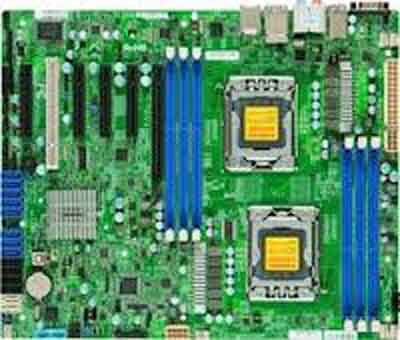

Supermicro X9DAL-i Motherboard

• Storage:

  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10

• Rear Panel I/O Ports:

  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
  • 4x USB 3.0 ports (2 rear + 2 via header)
  • 10x USB 2.0 ports (4 rear + 6 via header)
  • 7.1 HD Audio with optical S/PDIF
  • PS/2 Keyboard Combo port
  • Serial Port / Header: 2x Fast UART 16550 ports / 1 rear and 1 header
  • 1 DOM (Disk on Module) power connector

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
  • FAN: 6x 4-pin fan headers (up to 6 fans)
  • 6x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 6x Fan Connectors
  • I²C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • LED: CPU / System Overheat LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
  • Operating Temperature Range: 10 °C - 35 °C (50 °F - 95 °F)

Motherboard Specifications

• Model:
  • Supermicro X9DAL-i Motherboard


• Processor Support:

  • Intel ® Xeon ® processor E5-2400 (up to 95W TDP **)
  • Dual Socket B2 (LGA 1356)
  • Up to 20MB

• Chipset:
  • Intel ® C602 chipset

• FSB:
  • QPI up to 8 GT/s

• Memory:

  • 6x 240-pin DDR3 DIMM sockets
  • Supports up to 192 GB DDR3 ECC Registered memory (R/LRDIMM)
  • Supports up to 48 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
  • Memory Type:1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • Support ECC and non-ECC UDIMMs
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • Memory Voltage: 1.5 V, 1.35 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 1x PCI-E 3.0 x16
  • 3x PCI-E 3.0 x8 (1 allows a x16 card)
  • 1x PCI-E 3.0 x4 (in x8)
  • 1x PCI-32

• On-Board Audio:
  • RealTek ALC889 7.1 High Definition Audio with S/PDIF header

• On-Board LAN:

  • Intel ® 82574L Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • ATX

  • 12" x 10" (30.48cm x 25.4cm)
• Manageability:

  • SuperDoctor ® III
  • Watch Dog
  • NMI
  • Power Configuration: ACPI / APM Power Management
  • Main Switch Override Mechanism
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
  • Suspend to RAM (STR)
• BIOS:
  • 128Mb SPI Flash EEPROM with AMI BIOS
  • Features: Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards,Revision M  chassis is recommended. Please talk to your sales representative for details.
