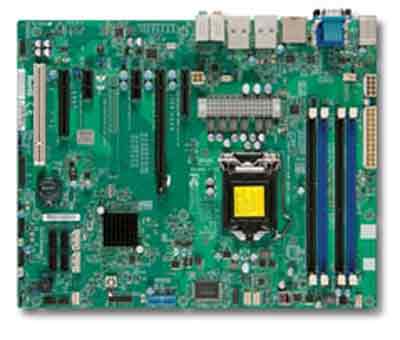

Supermicro X9SAE Motherboard

• Storage:

  • 4x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
  • 2x SATA3 (6Gbps) w/ RAID 0, 1

• Rear Panel I/O Ports:
  • TPM header
  • 2 SATA 3.0 ports (6Gbps)
  • 4 SATA 2.0 ports (3Gbps)
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 4 USB 3.0 ports total (2 rear, 2 via header)
  • 8 USB 2.0 ports total (4 rear, 4 via header)
  • 7.1 HD Audio ports with optical S/PDIF
  • 1 VGA and 2 HDMI ports (Dual Display)
  • 2x serial ports (1 rear, 1 header)
  • 1x DOM (Disk on Module) power connector

• Hardware Monitoring:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • FAN: Total of five 4-pin fan headers supporting up to 5 fans w/ tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free


Motherboard Specifications

• Model:
  • Supermicro X9SAE Motherboard


• Processor Support:
  • Intel ® Xeon ® E3-1200 v2 series, Core i7/i5/i3 (non-ECC UDIMMs only), Pentium ® & Celeron ® processors
  • Socket H2 (LGA 1155)

• Chipset:
  • Intel C216 Express PCH chipset

• Memory:

  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC and non-ECC UDIMM
  • 1600/1333MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 1x PCI-E 3.0 x16 slot
  • 2x PCI-E 2.0 x4 (1 in x8)
  • 2x PCI-E 2.0 x1 & 1x PCI-32bit 5V slots

• On-Board Audio:
  • RealTek ALC889 7.1 High Definition Audio with S/PDIF header

• On-Board LAN:

  • Dual LAN via Intel ® 82579LM + 82574L Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6", (30.48cm x 24.38cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / APM Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery
• BIOS:
  • 128Mb SPI Flash with AMI BIOS
  • Features: Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI
  • RTC (Real Time Clock) Wakeup

• Special Features:
  • Tower: SC733 and SC732 series
