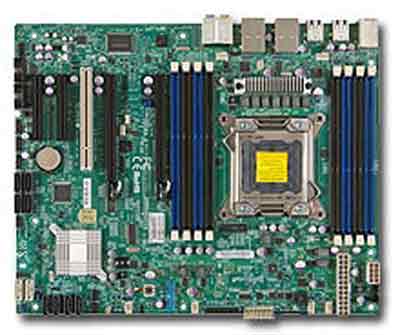

Supermicro X9SRA Motherboard
- Storage:
- SATA3 (6Gbps) and SATA2 (3Gbps)
- RAID 0, 1, 5, 10 support (Windows)
- RAID 0, 1, 5, 10 support (Linux)
- Rear Panel I/O Ports:
- Super I/O: Winbond
- 20pin Header v1.2
- 2x SATA 3.0 ports (6Gbps)
- 4x SATA 2.0 ports (3Gbps)
- 4x SATA 2.0 ports (3Gbps) via SCU
- 2x RJ45 Gigabit Ethernet LAN ports
- 4x USB 3.0 ports (5Gbps)
- 14x USB 2.0 ports total (8x rear + 6x via header)
- Line-in / Line-out / Microphone Ports
- PS/2 Keyboard/Mouse port
- 2x headers
- Special Features:
- Important Chassis Notes: To support the new generation
Intel ® Xeon ® processor-based motherboards,Revision K chassis is
recommended for most models. Please talk to your sales representative
for details.
- Hardware Monitoring:
- Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby,
VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense
from 0.8375V-1.60V
- FANS: Total of five 4-pin fan headers supporting up to
5 fans
- 5 fans w/ tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature: Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill support
- RoHS, Halogen Free
|
Motherboard Specifications
- Model:
- Supermicro X9SRA Motherboard
- Processor Support:
- Intel ® Xeon ® processor E5-2600/E5-1600 family (up to 8
cores and up to 150W)
- Single Socket R (LGA 2011)
- Intel ® Core i7 Extreme / Performance LGA 2011
processors w/
Non-ECC UDIMM only
- Memory:
- 8x 240-pin DDR3 DIMM sockets
- Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
- Supports up to 64 GB DDR3 ECC and non-ECC UDIMM
- 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin
gold-plated DIMMs
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
- 1.5 V, 1.35 V
- Error Detection: Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Expansion Slots:
- 2x PCI-E 3.0 x16 slots
- 1x PCI-E 3.0 x4 (in x8) slot
- 1x PCI-E 2.0 x4 (in x8) slot
- 1x PCI-32 slot
- On-Board Audio:
- RealTek ALC889 7.1 High Definition Audio with S/PDIF
header
- On-Board LAN:
- Intel ® 82579LM and 82574L, 2x Gigabit LAN ports
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45
output
- Form
Factor/Dimensions:
- ATX
- 12" x 9.6", (30.48cm x 24.4 cm)
- Manageability:
- NMI
- Power Configurations: ACPI / APM Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
- BIOS:
- 64Mb SPI Flash EEPROM with AMI BIOS
- Features: Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI
- RTC (Real Time Clock) Wakeup
|
