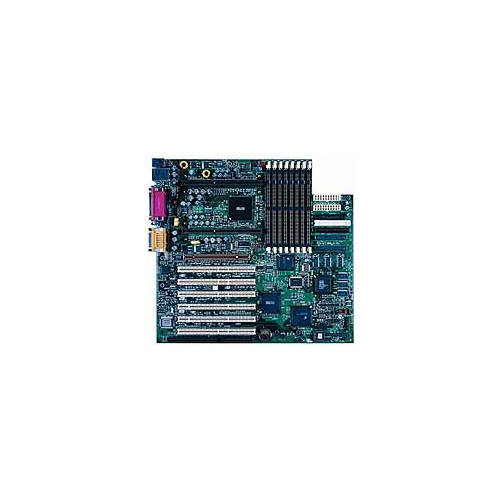

Tyan Thunder 2500 S1867DLU3AN Motherboard

• Special Features:
  • Dual Channel Ultra2 or Ultra160 LVD SCSI
    Symbios 896 with Bus Mastering up to 15 devices
    Channel A: One 68-pin connector
    Channel B: One 68-pin connector
    A dedicated PCI slot available to support low-cost, intelligent RAID controller, RAID 0, 1, and 5.

• BIOS:

  • Phoenix BIOS on 2 Mb flash ROM
    Auto detection of memory size
    Auto configuration of IDE hard disk types
    Multiple boot options
    DMI 2.0 / PC 99 compliant
    No ACPI support




• Industrial Standard:

  • FCC DoC (Declaration of Conformity)
    European Community CE (Declaration of Conformity)




• Rear Panel I/O Ports:
  • Stacked (2) Mouse / Keyboard ports
  • Stacked (2) USB (support Win98 only)
  • RJ-45 with LED ports
  • Stacked Line-In / Line-Out / Mic-In / MIDI ports
  • PS/2 Mouse & Keyboard ports
• Internal I/O Interface:
  • SMC 37B787 Super I/O chip
  • Two 9-pin 16550 UART Serial ports
  • One 25-pin ECP / Epp Parallel port
  • Floppy Controller

Motherboard Specifications

• Model:
  • Tyan Thunder 2500 S1867DLU3AN Motherboard
• Processor Support:
  • Dual Intel Slot1 Supports Pentium III processor 350 to 933 MHz
  • Dual Integrated VRM complies to spec 8.4

• Chipset:

  • ServerWorks (RCC) Sever Set III HE
    Up to 4 drives; two 40-pin IDE connectors (primary / secondary)




• FSB:

  • Support for 100 / 133 MHz CPU bus speed





• Memory:
  • Eight 168-pin DIMM sockets
  • Supports maximum of 8GB PC133 REGISTERED DIMM ONLY
  • ECC memory support via core logic

• Expansion Slots:

  • One 2x / Pro AGP slot
  • Four 64-bit/ 33MHz PCI slots
  • Two 64-bit/ 66MHz 3.3V PCI slots





• On-Board Audio:
  • Ensoniq 1373 PCI Sound
    Ensoniq AC'97 Codec
    Sound Blaster Compatible 16-bit Stereo
    Line-in, Line-out, MIC and Game / MIDI ports
    4-pin CD-ROM audio header
    4-pin Telephony header
    4-pin Video audio header
    Sound drivers for Win 2000 & NT
• On-Board LAN:
  • Intel 82559 10/100Mb NIC
    3-pin Wake on LAN
    Alert on LAN II support (optional)
• Form Factor:
  • Extended ATX footprint (12" x 13")
    Eight-Layer board
    Two 20-pin ATX power connector
