• Storage:
  • (1) ATA 100/66 IDE bus master channel supports up to 2 ATA/ATAPI IDE compliant drives

• Rear Panel I/O Ports:
  • Stacked PS/2 mouse and keyboard ports
  • Stacked (4) USB ports
  • (1) serial and (1) VGA connectors
  • (2) Side-by-side GbE RJ-45 w/ stacked dual USB connectors (total 6 USB ports in rear I/O panel)

• Internal I/O Interface:
  • (1) Floppy connector for up to two drives
  • (1) COM port (via cable)
  • (1) ECP/EPP/SPP parallel port header (via cable)
  • (4) USB 2.0 Type A (vertical) connectors
  • (1) IDE connector
  • (4) SATA-II ports
  • (1) 2x25 connector for optional TYAN SMDC card

• Intelligent Platform Management Interface (optional):
  • Tyan M3291 Server Managment Daughter Card:
    Support features listed below via IPMI header
  • Based Renesas H8 2167 Baseboard Management Controller (BMC)
  • Tailored for IPMI 2.0 specifications
  • Windows and Linux based Management Solution
  • Supports RMCP and SNMP protocols
  • I2C serial multi-master controllers and UARTs
  • Supports remote Power on/off and reset support
    (IPMI-over-LAN) on Intel 82573


• Regulatory:
  • FCC Class B (Declaration of Conformity)
  • European Community CE

• System Management:
  • Tyan M3291 SMDC support via 25x2 pin-header
  • Integrated H/W monitoring functions in Super I/O chip with PECI support
  • (1) 4 pin CPU Fan header & (4) 4-pin fan headers
  • 2-pin chassis intrusion header
  • Temperature and voltage monitoring


Motherboard Specifications

• Model:

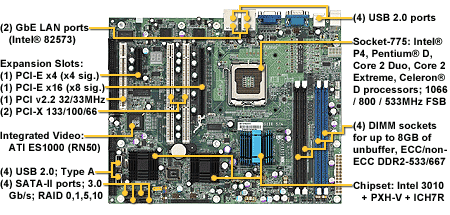

  • Tyan Toledo i3010W (S5197G2NR) Motherboard

• Processor Support:
  • Single Socket-T (LGA775 Socket)
  • Supports Intel ® Xeon ® processor 3000 series,Intel ® P4, Pentium ® D, Core 2 Duo, Core 2 Extreme, Celeron D processors
  • Onboard 5-phase VRM
  • 1066/800/533MHz FSB support

• Chipset:
  • Intel ® 3010 + PXH-V + ICH7R

• Memory:
  • Dual or single DDR2 memory channels
  • (4) 240-pin DDR2 DIMM sockets
  • Support up to 8GB of unbuffered, ECC and non-ECC DDR2-667/533 memory

• Expansion Slots:
  • (2) PCI-X 133/100/66MHz slots in (1) PCI-X bus
  • (1) PCI-E x16 slot (with x8 signals)
  • (1) PCI-E x4 slot (with x4 signals)
  • (1) PCI v2.2 32-bit 33MHz 3.3V slot
  • (5) total usable slots

• On-Board LAN:
  • (2) 10/100/1000 Gigabit Ethernet NIC
  • (2) Intel ® i82573 GbE NICs (82573E & 82573V)
  • Running at independent x1 PCI-E buses

• Integrated Video:
  • ATI ® ES1000; PCI interface
  • 32MB DDR frame buffer

• BIOS:
  • Phoenix BIOS ® on 8Mbit Flash ROM
  • Supports APM 1.0, PnP
  • Auto detection of memory size
  • User-configurable H/W monitoring
  • Auto-configuration of hard disk types
  • Multiple boot options
  • Power Management: S1, S3, S4, and S5

• Form Factor:
  • ATX footprint (12" x 9.6", 305 x 244mm)
  • EPS12V / SSI (24 + 8 pin) power connectors
