• Special Features:
  • Integrated SCSI
    LSI SYM53C1010R controller
    Dual-channel Ultra160 SCSI support 160MB/sec max. data throughput per channel
    Supports up to 15 LVD SCSI devices per channel
    - Channel A: 68-pin connector
    - Channel B: 68-pin connector

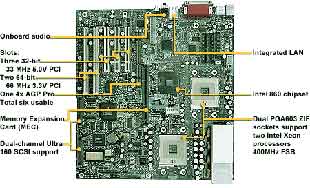

Motherboard Specifications

• Model:
  • Tyan Thunder I860 S2603UANM-R8 Motherboard

• Processor Support:
  • Dual PGA603 ZIF sockets
    Supports up to two Intel ® Xeon processors
  • Two onboard VRMs

• Chipset:
  • Intel ® 860 chipset
    82860 North Bridge, 82801BA I/O Controller Hub, 82802AB Firmware Hub and 82806AA PCI 64 Hub


• FSB:
  • 400MHz



• Memory:
  • Eight 184-pin RIMM sockets
    Dual channel memory bus
  • Supports up to 4GB of PC800 Rambus memory
  • Memory Expansion Card (MEC) design

• Expansion Slots:
  • One AGP Pro slot; also supports 4x
  • Two 64-bit 66MHz (3.3-volt) and three 32-bit 33MHz (5-volt) PCI slots
  • Total of six usable slots


• BIOS:
  • Phoenix BIOS on 4Mb Flash ROM
    Supports APM v1.2 and ACPI v1.0
    User settings for hardware monitoring
    Auto configuration of IDE hard drive types
    Multiple boot options; DMI 2.0 compliant

• Form Factor:
  • Extended ATX footprint (13" x 12", 330.2mm x 304.8mm)
    One 24-pin and one 8-pin power connectors
    Go here to see how to connect them.
    Stacked parallel (one) and serial (two) ports
    Stacked RJ45 LAN and audio ports
    Stacked USB (two) ports
    Stacked keyboard and mouse ports
