• Server Management:
  • QLogic Zircon Baseboard Management
  • BMC based on powerful ARM7 technology
  • Tailored for IPMI highest 1.5 Spec.
  • Supports KCS and BT styles
  • Supports Windows/Linux Management solution
  • Supports RMCP and SNMP protocols
  • Supports ASF standard and EMP
  • I2 C serial multi-master controllers and UARTs
  • Built-in IPMB connector
  • Supports remote Power on/off and reset (IPMI over LAN)



• Rear Panel I/O Ports:
  • ATX12V/EPS12V** universal power connectors
  • Stacked parallel (1), serial (1) and VGA (1) ports
  • Stacked USB (2) ports
  • Side-by-side RJ-45 LAN (2) ports with LEDs
  • Stacked keyboard and mouse ports


• Internal I/O Interface:
  • One floppy connector supports up to two drives
  • Two 9-pin serial connectors
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 1.1 ports (two via optional cable)
  • PS/2 keyboard and mouse connectors


• Regulatory:
  • FCC DoC (Declaration of Conformity) certified
  • European CE (Declaration of Conformity)


• Hardware Monitoring:
  • 3-pin fan monitoring headers
  • Winbond W83782D hardware monitoring ASIC
  • CPU temperature and voltage monitoring


Motherboard Specifications

• Model:

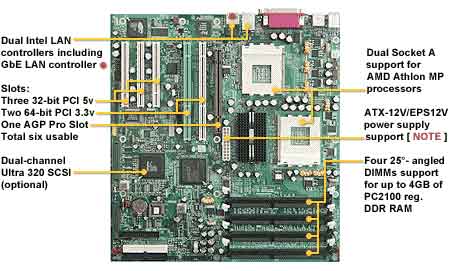

  • Tyan Thunder K7X PRO S2469UGN


• Processor:
  • Dual mPGA462 ZIF sockets
  • Supports up to two AMD Athlon MP processors
  • Two onboard 3-phase VRMs
  • Front-Side Bus support for 266/200MHz


• Chipset:
  • AMD-760 MPX chipset;
  • AMD-762 north bridge & AMD-768 south bridg
  • Winbond W83627HF Super I/O ASIC
  • Winbond W83782D hardware monitoring IC


• Memory:
  • Four 184-pin 2.5-Volt DDR DIMM sockets
  • 25 ° DDR sockets enable rackmount installation
  • Supports up to 4GB* of Registered DDR 200/266
  • Supports ECC (72-bit) memory modules


• Expansion Slots:
  • One AGP Pro110 slot; also supports 4x/2x AGP
  • Two 64-bit 66MHz (3.3-Volt) PCI slots
  • Three 32-bit 33MHz (5-Volt) PCI slots
  • Total of six usable slots


• IDE Controllers:
  • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices
  • Supports for UDMA-100/66/33 IDE drives and ATAPI-compliant devices


• LAN:
  • Fast Ethernet and Gigabit Ethernet controllers - Intel 82545EM 10/100/1000Mbps controller - Intel 82551QM 10/100Mbps controller
  • Two RJ-45 LAN connectors with LEDs
  • Two Front Panel LED headers


• BIOS:
  • Phoenix BIOS on 4Mbit Flash ROM
  • PXE boot and SMBIOS v2.3 suppor
  • BIOS Boot specification v1.01 (BBS) support
  • Boot to USB (Mass Storage Class) support
  • Power on after AC failure control; ACPI support


• Form Factor:
  • Extended ATX Footprint - (13" x 12", 330.2mm x 304.8mm)
