• Storage:
  • 1x ATA-133 channel
  • 6x SATA2 ports
  • Support RAID 0,1,0+1,5 and JBOD

• Rear Panel I/O Ports:
  • (2) Stacked USB 2.0 + (1) Firewire ports
  • (2) Stacked USB 2.0 + (1) GbE LAN ports
  • (2) Stacked USB 2.0 + (1) GbE LAN ports
  • 3 Audio jacks (from bottom: line out , line in , MIC (optional)
  • 1 Stacked PS/2 mouse and keyboard ports
  • 1 Stacked Serial connector

• Internal I/O Interface:
  • 10 USB 2.0 ports (6 rear, 3 front, 1 via header)
  • 1 1394a channel for front (header)
  • 6 SATA-II connectors
  • 1 IDE
  • 1 floppy connectors

• On-Board LAN:
  • (2) GbE via Marvell 88E1121
  • Supports WOL and PXE

• Hardware Monitoring:
  • CPU thermal & voltage monitor support
  • (6) 4-pin fan headers
  • Temperature & voltage monitoring
  • 1 2-pin chassis intrusion header
  • Watchdog timer support


• Integrated FireWire (1394a) Controller
  • TI TSB43AB22A 1394a PCI controller
  • 1394a channel for rear (connector)
  • 1394a channel for front (header)

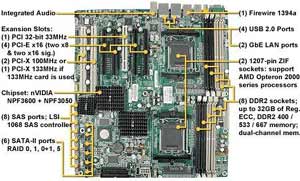

Motherboard Specifications

• Model:
  • Tyan Thunder n6650W (S2915WA2NRF) Opteron 2000 Motherboard

• Processor Support:
  • Dual 1207-pin sockets support AMD Opteron
    (Rev. F) 2000 series processors
  • Uses the standard 3 1/2"/ 89mm socket connector
  • Two onboard 5-phase digital VRMs

• Chipset:
  • nVidia NFP3600 & NPF3050 + NEC nPD720404 PCI-X tunnel + SMSC 5307 Super I/O controller

• Memory:
  • 8x 240pin DDR2-667/533/400 DIMMs
  • Dual channel, ECC/REG, Max capacity 32GB

• Expansion Slots:
  • 1 PCI-E x16 signal from IO55
  • 1 PCI-E x16 slot from MCP5
  • 1 PCI-E x16 from MCP55 with x8 signal
  • 1 PCI-E x16 from IO55 with x8 signal
  • 2 PCI PCI-X 100MHz slots from NEC nPD720404 or 1 PCI-X 133MHz slot if 133MHz card is used
  • 1 PCI v2.3 32-bit 33MHz slot
  • 7 usable expansion slots total

• Integrated SAS Controller:
  • LSI 1068E SAS controller
  • (8) SAS ports

• Integrated Audio
  • HD Audio (High-Definition Audio) supported
  • Realtek ALC262 controller (High Definition Audio)
  • Line-in, Line-out, Mic-in rear ports SPDIF-out in rear
  • CD-in connector Aux headers (4-pin configuration)

• BIOS:
  • Phoenix BIOS on 8Mbit LPC Flash ROM
  • Serial Console Redirect
  • PXE via Ethernet, USB device boot
  • User-configurable H/W monitoring
  • 48-bit LBA support
  • PnP, DMI 2.0, WfM 2.0 Power Management


• Form Factor:
  • SSI/Extended ATX footprint (12" x 13")
  • EPS 12V / SSI (24 + 8 + 4 pin) power connectors
    support, onboard 4-phase VRD
