• BIOS:
  • AMI BIOS on 4Mb Flash ROM>br> APM 1.2 / ACPI 1.0 / PC99 compliant
    ACPI bi-color LED for PC99
    Auto-configuration of IDE hard drives
    Multiple boot options
    Instant PC (Suspend to RAM) support
    DMI 2.0 compliant



• Hardware Monitoring:
  • Two 3-pin fan monitoring headers
    One 2-pin chassis intrusion header


• Rear Panel I/O Ports:
  • One floppy connector for up to two drives
    Two 9-pin 16550-based serial ports (one via optional cable)
    One 25-pin SPP/ECP/EPP parallel port
    Two USB ports
    PS/2 keyboard and mouse ports

• Internal I/O Interface:
  • Two 40-pin EIDE connectors support up to four drives
    Support ATA-66/33 and ATAPI compliant devices

Motherboard Specifications

• Model:

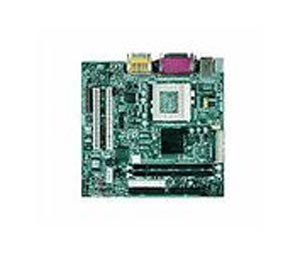

  • Tyan Tomcat S2420S Motherboard

• Processor Support:
  • Single PGA370 ZIF socket
  • Supports one Intel Celeron or Pentium III processor

• Chipset:
  • Intel 810e AGPset


• FSB:
  • 66 ~ 133MHz



• Memory:
  • Two 3.3v 168-pin DIMM sockets
  • Supports up to 512 MB of PC100/133 SDRAM

• Expansion Slots:
  • Two 32-bit 33MHz (5-volt) PCI slots



• On-Board Audio:
  • Intel 810e digital link audio
    ADI 1881 AC'97 Audio Codec
    One MIDI / Game port
    Line-in, Line-out, Mic ports
    4-pin CD-ROM audio (ATAPI) header



• On-Board Video:
  • Intel 810e DVMT 2D/3D graphics controller
    4MB SDRAM frame buffer onboard
    Standard 15-pin analog VGA port

• On-Board LAN:
  • Intel 82559 LAN controller
    10/100Mbps data transfer rate
    3-pin Wake-on-LAN (WoL) header
    3-pin Wake-on-Ring (WoR) header

• Form Factor:
  • Flex ATX design (9.0" x 7.5")
