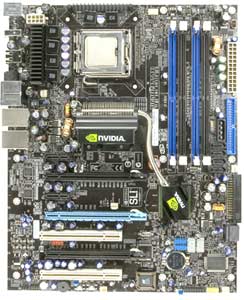

XFX MB-N680-ISH

• LAN:
  • Integrated Gigabit Dual LAN 10/100/1000


• Rear Panel I/O Ports:
  • 1 x Audio I/O (Line-in/Line-out/MIC)
    Keyboard Port
    6 USB Ports 2.0
    PS/2 Mouse port
    1x IEEE1394a ports
    1x SPDIF Output
    2x RJ45 Ports

• Internal I/O Interface:
  • 1 x ATA100 up to 2 Devices
    FDD Connector
    4 SATA
    2 USB (headers)
    1x IEEE1394a ports (header)

Motherboard Specifications

• Model:
  • XFX MB-N680-ISH Motherboard

• Processor Support:
  • Intel Socket 775
  • Core 2 Extreme (dual and quad core), Core 2 Duo, Core 2 Quad, Celeron D, Pentium 4, Pentium D 9XX, Pentium D 8XX


• FSB:
  • 1333 MHz with supporting CPU

• Chipset:
  • nVidia nForce 680i LT SLI MCP



• Memory:
  • 24x 240pin DDR2-800/667/533 DIMMs
  • Max capacity 8GB
  • Suppor SLI-Ready Memory w/ EPP upto 1200MHz Dual Channel


• Audio:
  • High Definition Audio (HDA)
    8 Channel

• Expansion Slots:
  • 2x PCI Express x16 slots (Support nVidia SLI Technology)
  • 1x PCI Express x16 slots (Run on x8)
  • 2x PCI-Express x1 Slots
  • 2 PCI Slots


• Storage:
  • NVIDIA MediaShield Storage
  • IDE: 2x ATA-133 Channels
  • 6x SATA2 Ports
  • Support RAID 0, 1, 0+1, 5

• Form Factor:
  • ATX 12 x 9.6 inch
  • 1x 24pin Main Power,
  • 1x 8pin CPU power
