Netgear EN104 with BNC Port (New) AUI backbone support 10Base-T Ethernet 4 Port Hub with Power Supply

Netgear EN104 with BNC Port - 4 Port Hub

Power Supply Included

Hub Specifications

• 10BASE-T Ports: 4
• Dimensions:   (W) 94mm (3.7"), (D) 101mm (4.0"),
  (H) 28mm (1.1"), Weight: 0.34 kg (.74 lbs)
• AC Voltage
  Localized plug for North America, Japan, UK, Europe, Australia
• Standards Compatibility
  IEEE 802.3i 10BASE-T, 10BASE-2, 10BASE-5 10 Mbps Ethernet Windows 95, Macintosh, Novell Netware, Lantastic
• Status LEDs
  Unit: power, collision; Per 10BASE-T port: Link,Rx;
  AUI port: Active, Rx; BNC port : Active, Rx
• Environmental Specifications
  Operating temperature: 0 °C to 40 °C
  Operating humidity: 90% max. relative humidity, non-condensing
• Electromagnetic Emissions
  CE mark, commercial
  FCC Part 15 Class A
  EN 55 022 (CISPR 22), Class A
  VCCI Class A
• Electromagnetic Susceptibility
  CE mark, commercial
• Power Adapter Safety Approvals
  CE mark, commercial, UL listed (UL 1950),
  CSA certified (CSA 22.2 #950), T-mark,
  TUV licensed (EN 60 950)

• Resource sharing
  Provides effective information exchange, resource sharing, and client/server or peer-to-peer applications solution with simple UTP (unshielded twisted-pair) wiring.
• Limited lifetime warranty
  Provides peace of mind.
• Slim, sturdy metal case design
  provides a visual enhancement to the workspace without cluttering it. Compact design fits anywhere ” desktop or wall-mounted.

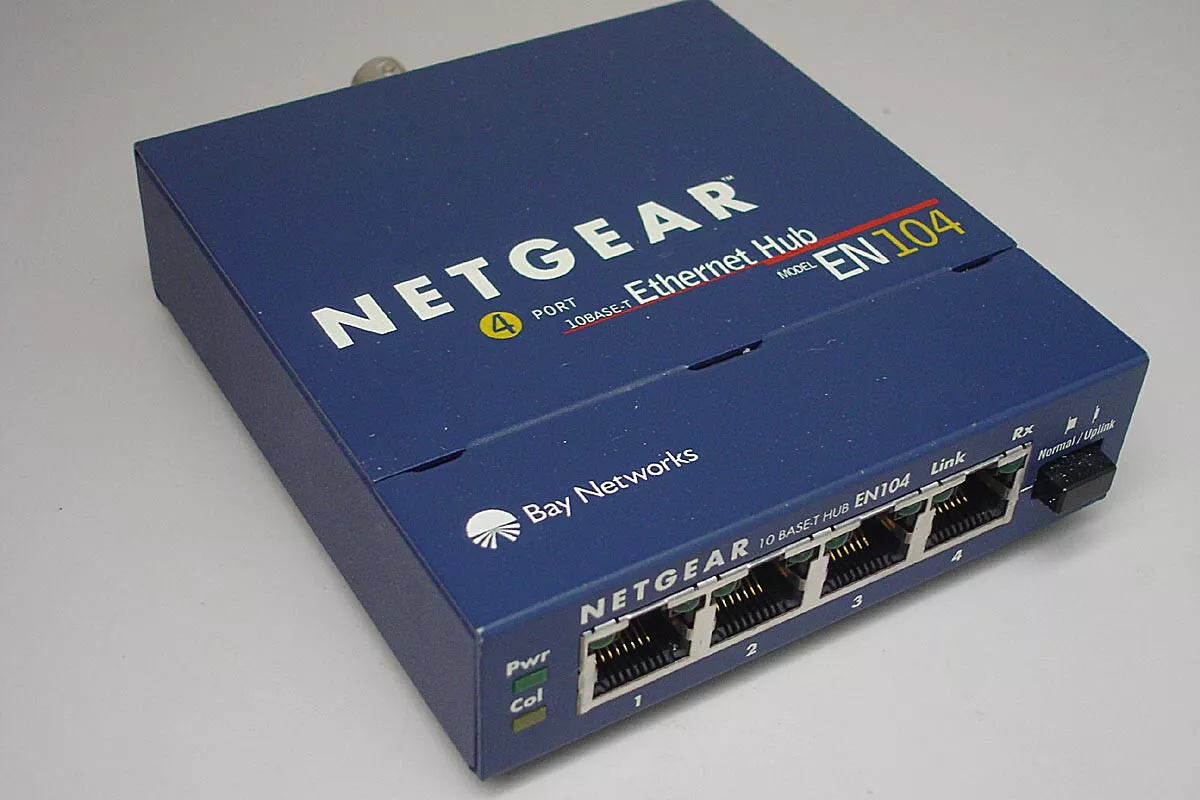

• vista jacks with built-in LED indicators
  clearly indicate port status, simplifying installation and troubleshooting. The unit is plug-and-play with no software to configure.
• BNC/AUI backbone support
  Link to other networks using thin coaxial cables connected to the BNC port, or by using other cabling with appropriate external AUI transceivers.

• Uplink port for network expansion
  Push-button uplink port simplifies cascading with other hubs using standard UTP cables.
