• BIOS:
  • Onboard Flash ROM
  • Supports Plug and Play configuration of peripheral devices and expansion cards
  • Built-in virus protection using Trend's ChipAway Virus provides boot process virus protection.

• Hardware Monitoring:
  • Power Supply and Power Management
  • ATX power supply connector ACPI and previous PMU support, suspend switch, keyboard power on/off
  • Supports Wake on Modem, Wake on LAN and Wake on Alarm

• On-Board Audio:
  • Complies with the PC98 audio specification
  • 16-bit CODEC for full-duplex playback and recording HRTF
  • 3D professional audio supports both Direct Sound 3D ® and A3D ®-compatible interfaces plus support for 4-channel speakers
  • Driver support for MS-DOS, Microsoft Windows 95/98/2000/NT 4.0
  • Built-in 32ohm earphone buffer and 3D surround sound Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support
  • Downloadable Wave-table Synthesizer supports Direct Music ® Digital Audio Interface (SPDIF In/Out) with 24-bit stereo, 48KHz sampling rate and measured 120dB audio quality
  • Optional optic fiber interface enables communication with MiniDisc player/recorder or a high-end audio system
  • Stereo Mixer supports analog mixing from CD-Audio and Line In or digital mixing from voice, FM/Wave-table and digital CD-Audio

• On-Board Video:
  • Onboard advanced 128-bit 2D/3D AGP Graphics Accelerator
  • Shared SDRAM memory architecture allows a maximum of 64 MB main memory to act as frame buffer
  • Supports high resolutions up to 1920x1200 and 32-bit color pipeline, up to 2048x2048
  • Texture size and Virtual screen up to 4096x4096
  • High performance 128-bit 2D GUI/DirectDraw acceleration
  • Video Acceleration for DirectShow, MPEG-1, MPEG-2 and Indeo

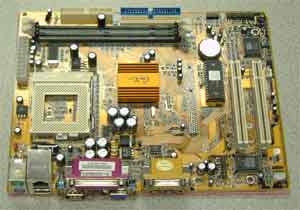

Motherboard Specifications

• Model:
  • Amptron PIII 3578MR

• Processor Support:
  • PPGA Celerons from 300MHz to 600MHz
  • FCPGA Pentium III CPUs up to 866MHz

• Chipset:
  • SiS 630E Chipset
• FSB:
  • 66MHz, 100MHz, 105MHz or 133MHz FSB

• Memory:
  • 2 168-pins DIMM Scockets
  • Supports up to 1GB of main memory

• Expansion Slots:
  • Two 32-bit PCI slots


• On-Board LAN:
  • 10BaseT/100BaseTX Ethernet LAN LAN controller integrates Fast Ethernet MAC and PHY
  • compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards
  • Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0
  • High Performance provided by 100Mbps clock generator and data recovery circuit for 100Mbps receiver

• Rear Panel I/O Ports:
  • Provides PC99 Color Connectors for easy peripheral device connections
  • Floppy disk drive connector with 1Mb/s transfer rate
  • One serial port with 16550-compatible fast UART
  • One parallel port with ECP and EPP support
  • Two USB ports and two PS/2 ports for keyboard and mouse
  • One infrared port connector for optional module

• Internal I/O Interface:
  • Primary and Secondary PCI IDE channels
  • Support for PIO (programmable input/output) modes
  • Support for Multiword DMA modes
  • Support for Bus Mastering and Ultra DMA 33/66 modes

• Form Factor:
  • Micro-ATX form factor 9.61'' x 8.27'' (24.4cm x 21cm)
