Asus P3C2000 Motherboard

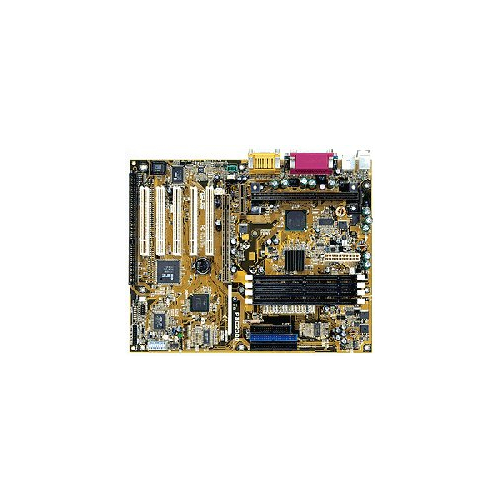

Motherboard Image
Motherboard Specifications
Specifications:
Processor
Slot 1 Intel Pentium ® II/III Processor 350-800MHz Supports 133MHz / 100MHz Front Side Bus (FSB)
Chipset
Intel 820 AGPset AD1881 3D Enhanced AC97 Ready Audio CODEC
Cache Memory
None
System Memory
4 x DIMM sockets support 64-1GB memory total Supports 64/128/256 MB DIMM Module
IDE
2 X Ultra DMA/66 Bus Master IDE ports Supports up to 4 ATAPI devices
I/O Interface
1x floppy port (360KB-2.88MB) 2x serial ports (16550 high-speed) 1x parallel port (EPP/ECP) 1x Joystick, 1x Line-in, 1x Line-out, 1x MIC on-board PS/2 Keyboard/Mouse 2x USB
Expansion Slot
1 x AGP Slot Supports 2X/4X Mode 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant 1 x ISA 16-bit Slot
Power Management
Power On by , Keyboard, Mouse, LAN, RTC, Modem Ring & Soft-Power Switch AC Recovery On/Off Control
Form Factor
ATX Form Factor ATX Connector on Board 3V, 5V, 5VSB and 12V Double Deck ATX Back Panel
Protection
Temperature Sensor Under Processor Heatsink Speaker Alarm When CPU Overheats/CPU Fan Fail Auto Speed Down When CPU Overheats System Health Status Detect & Report by BIOS, LDCM ® & Winbond Health program. Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
BIOS
Award 4Mbit Smart BIOS - Jumper Free Award PCI BIOS Enhanced ACPI Feature Vcore, CPU/PCI Ratio & Boot Media Selection
